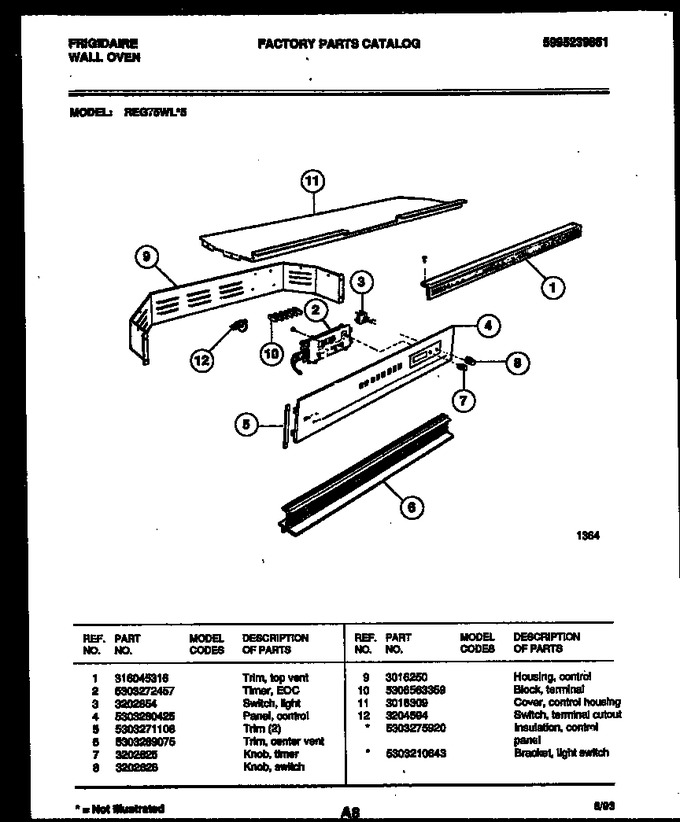

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316045316 | Trim, Top Vent |
|
- | |||||
| 2 | 5303272457 | Timer-eoc |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 5303280425 | Panel, Control |
|
- | |||||
| 5 | 5303271108 | Trim (2) |
|
- | |||||
| 6 | 5303289075 | Trim-center Vent |
|
- | |||||
| 7 | 3202625 | Knob - Timer |
|
- | |||||
| 8 | 3202626 | Knob - Switch |
|
- | |||||
| 9 | 3016250 | Housing, Control |
|
- | |||||
| 10 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 11 | 3016309 | Cover-control Housing |
|
- | |||||
| 12 | 3204594 | Switch-terminal Cutout |
|
- | |||||
| *79538 | 5303275920 | Insulation, Control Panel |
|
- | |||||
| *79539 | 5303210643 | Bracket-light Switch |
|
- |
