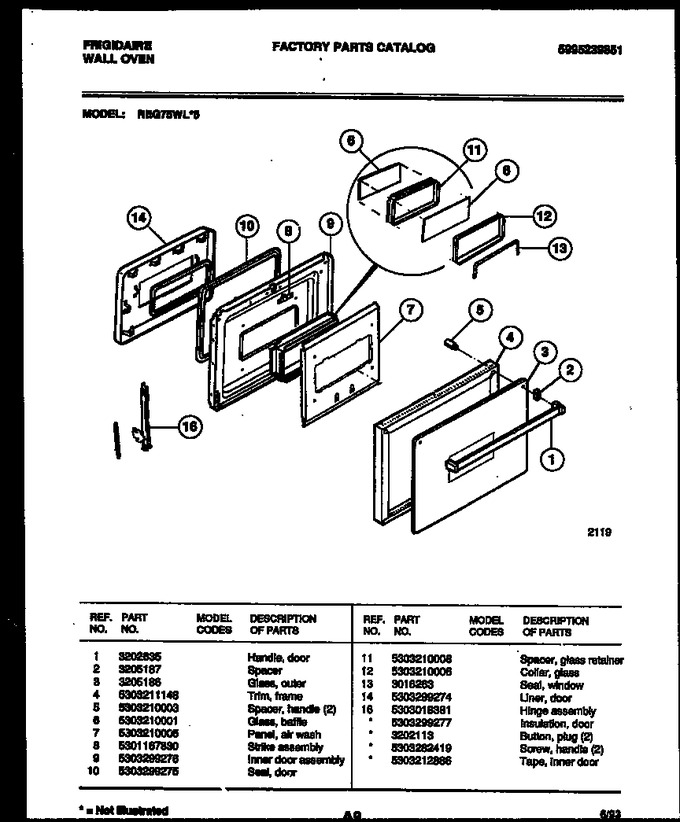

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202635 | Handle, Door |
|
- | |||||
| 2 | 3205187 | Spacer |
|
- | |||||
| 3 | 3205186 | Glass - Outer |
|
- | |||||
| 4 | 5303211148 | Trim - Frame |
|
- | |||||
| 5 | 5303210003 | Spacer - Handle (2) |
|
- | |||||
| 6 | 5303210001 | Glass-baffle |
|
- | |||||
| 7 | 5303210005 | Panel - Air Wash |
|
- | |||||
| 8 | 5301167830 | Strike, Assembly |
|
- | |||||
| 9 | 5303299276 | Inner Door Assembly |
|
- | |||||
| 10 | 5303299275 | Seal, Door |
|
- | |||||
| 11 | 5303210008 | Spacer-glass Retainer |
|
- | |||||
| 12 | 5303210006 | Collar - Glass |
|
- | |||||
| 13 | 3016263 | Seal - Window |
|
$ 66.15 | |||||
| 14 | 5303299274 | Liner, Door |
|
- | |||||
| 16 | 5303018381 | Hinge Assembly |
|
$ 145.85 | |||||
| *79541 | 3202113 | Button-plug (2) |
|
- | |||||
| *79541 | 5303299277 | Insulation, Door |
|
- | |||||
| *79542 | 5303212886 | Tape-inner Door |
|
- | |||||
| *79542 | 5303282419 | Screw-handle (2) |
|
- |
