Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 69406-1 Tray, Styrofoam Mullion Appelez-nous -
2 69414-4 Seal, Mullion Tray Appelez-nous -
3 WP61004888 Motor, Evaporator Fan   (Replaces: 54482-10) In-Stock Immediately $ 104.99

3 406062-1 Screw Appelez-nous -
4 64856-1 Bracket, Fan Motor Appelez-nous -
5 W11233072 Screw   (Replaces: 400015-36) In-Stock Immediately $ 12.62

6 64359-1 Blade, Evaporator Fan Appelez-nous -
7 420092-900 Washer, Spring Appelez-nous -
8 69811-4 Orifice Assy., Damper Appelez-nous -
9 68592-4 Air Tunnel Appelez-nous -
10 W11233072 Screw   (Replaces: 400015-31) In-Stock Immediately $ 12.62

11 66403-2 Cover, Evaporator Appelez-nous -
12 69400-1 Bottom, Frz. Appelez-nous -
13 60438-30 Shelf, Frz Appelez-nous -
14 60414-43 Trim, Front-full Appelez-nous -
15 60313-1 Cup, Shelf Appelez-nous -
16 69413-2 Magnet Appelez-nous -
17 66480-6 Cover, Plenum Appelez-nous -
18 68307-1 Grommet, Water Entry Appelez-nous -
19 WP841180A Tray, Ice   (Replaces: 59281-2) In-Stock Immediately $ 41.00

20 60653-1 Pan, Ice Appelez-nous -
20 60132-100 Trim, Handle Pan Appelez-nous -
21 400019-1 Screw Appelez-nous -
22 66101-1 Stud, Shelf Appelez-nous -
23 70146-2 Plug Button Appelez-nous -
24 68187-1 Cap, Connector Appelez-nous -
25 68946-2 Seal Appelez-nous -
26 69562-2 Seal, Mullion Tray (front) Appelez-nous -
27 66325-34 Seal, Air Tunnel----na Appelez-nous -
28 67114-4 Shelf, Ice Tray Appelez-nous -
29 70041-1 Support, Ice Shelf Appelez-nous -
29 W11772394 Screw   (Replaces: 400021-1) In-Stock Immediately $ 10.94

30 67148-2 Divider, Ice Shelf Appelez-nous -
31 67149-1 Support, Divider Appelez-nous -
31 65275-4 Screw Appelez-nous -
31 67150-1 Fastener, Divider Appelez-nous -
32 68387-1 Cap, Grommet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

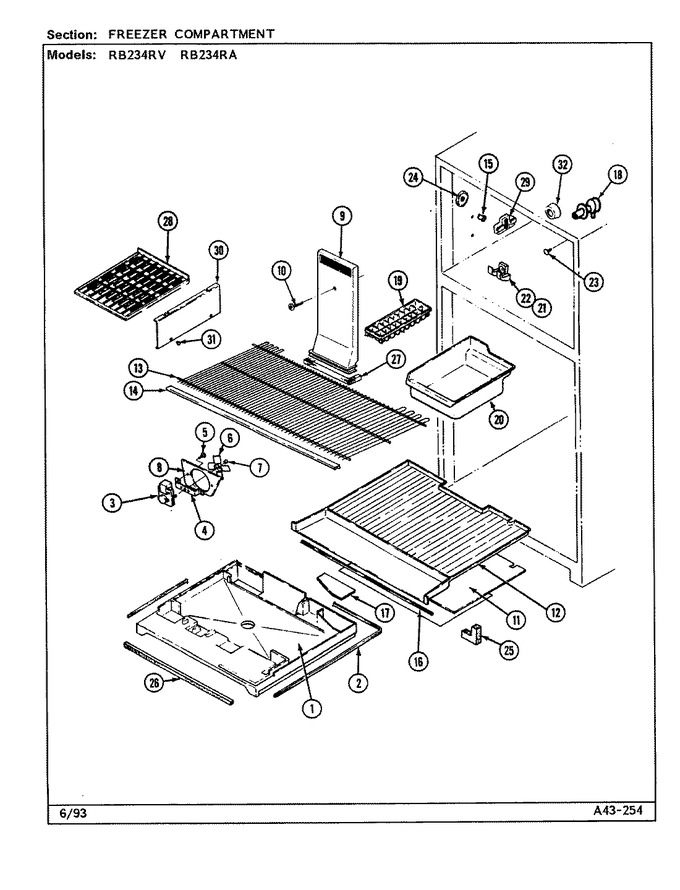

Diagram for RB234RA (BOM: DD94A)
