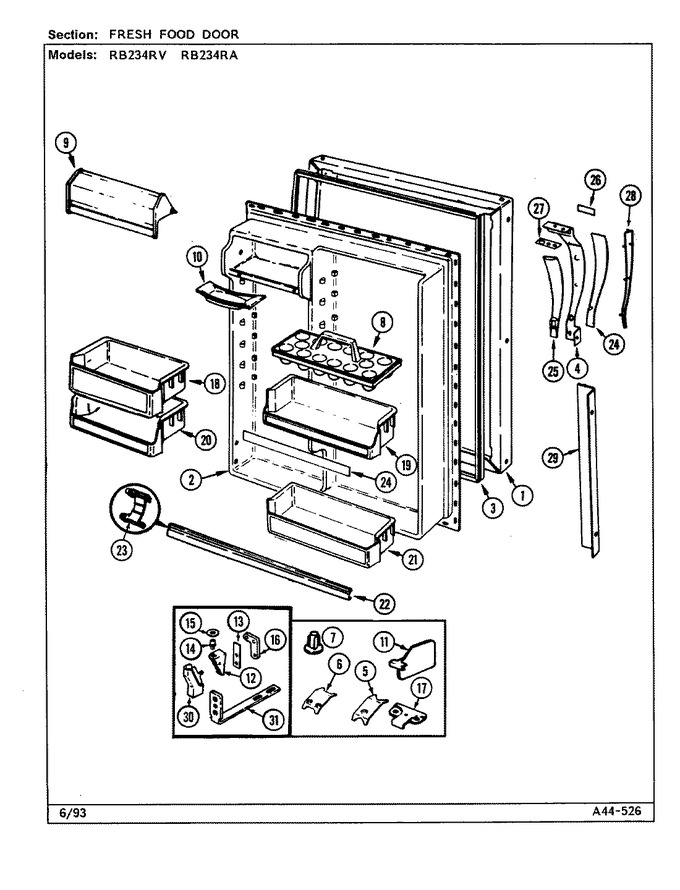

RB234RA (BOM: DD94A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	72342-5-AM	Panel, F.f. Door (alm)	Appelez-nous	-
2	69460-1	Liner	Appelez-nous	-
2	65275-5	Screw	Appelez-nous	-
3	70025-8	Gasket, F.f. Door	Appelez-nous	-
4	69300-4	Handle, Door----na	Appelez-nous	-
4	65275-57	Screw	Appelez-nous	-
5	56209-3	Clip, Stop Screw	Appelez-nous	-
6	60123-2	Clip, Stop Screw	Appelez-nous	-
7	55782-6	Plug Button (almond)	Appelez-nous	-
8	60066-1	Tray, Egg	Appelez-nous	-
9	66184-367	Door, Dairy	Appelez-nous	-
9	66184-365	Door, Dairy	Appelez-nous	-
10	29936-2	Tray, Butter	Appelez-nous	-
11	69759-2	Organizer	Appelez-nous	-
12	65275-51	Screw, Lower Hinge	Appelez-nous	-
12	69516-2	Hinge, Lower (blk)	Appelez-nous	-
13	69510-1	Shim, Lower Hinge	Appelez-nous	-
14	69845-1	Pin, Lower Hinge			$ 44.55
15	67483-3	Washer, Lower Hinge (Replaces: 67483-2)		Immediately	$ 45.86
16	67874-1	Tapping Plate, Lower Hinge	Appelez-nous	-
16	65275-59	Screw	Appelez-nous	-
17	69256-2	Stop, Door	Appelez-nous	-
17	65275-48	Screw	Appelez-nous	-
18	69872-7	Shelf, Pick-off	Appelez-nous	-
19	69872-11	Shelf, Pick-off	Appelez-nous	-
20	69872-9	Shelf, Pick-off	Appelez-nous	-
21	69872-10	Shelf, Pick-off	Appelez-nous	-
21	69794-1	Retainer, Bottle	Appelez-nous	-
22	WP61003045	Trim, Shelf (Replaces: 68832-63)			$ 129.55
23	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)			$ 9.39
24	68016-6	Handle Insert, Front	Appelez-nous	-
25	60445-4	Insert, Handle (back)	Appelez-nous	-
26	60603-20	Insert Nameplate	Appelez-nous	-
27	65275-53	Screw	Appelez-nous	-
27	68776-1	Shim Handle----na	Appelez-nous	-
28	68017-3	Insert, Vinyl Clad	Appelez-nous	-
29	60453-32	Trim, F.f. Door (alm)	Appelez-nous	-
30	68978-1	Cover, Lower Hinge (blk)	Appelez-nous	-
31	69511-1	Tapping Plate, Lower Hinge	Appelez-nous	-
