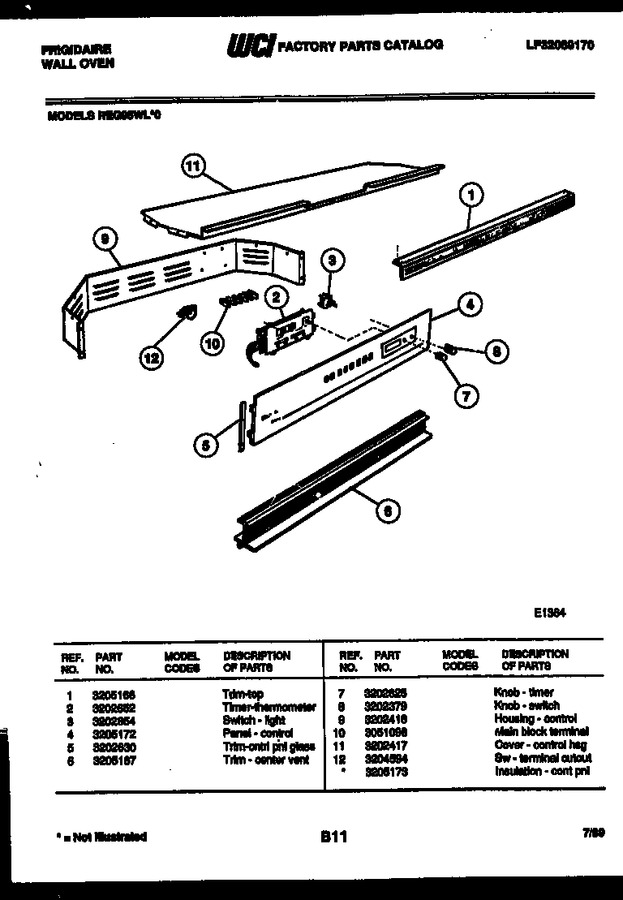

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205166 | Trim-top |
|
- | |||||
| 2 | 3202652 | Timer-thermometer |
|
- | |||||
| 3 | 3202654 | Switch-light |
|
- | |||||
| 4 | 3205172 | Panel - Control |
|
- | |||||
| 5 | 3202630 | Trim-cntrl Pnl Glass |
|
- | |||||
| 6 | 3205167 | Trim - Center Vent |
|
- | |||||
| 7 | 3202625 | Knob - Timer |
|
- | |||||
| 8 | 3202379 | Knob-switch |
|
- | |||||
| 9 | 3202418 | Housing-control |
|
- | |||||
| 10 | 3051098 | Main Block Terminal |
|
- | |||||
| 11 | 3202417 | Cover-control Hsg |
|
- | |||||
| 12 | 3204594 | Sw-terminal Cutout |
|
- | |||||
| *10028 | 3205173 | Insulation - Cont Pnl |
|
- |
