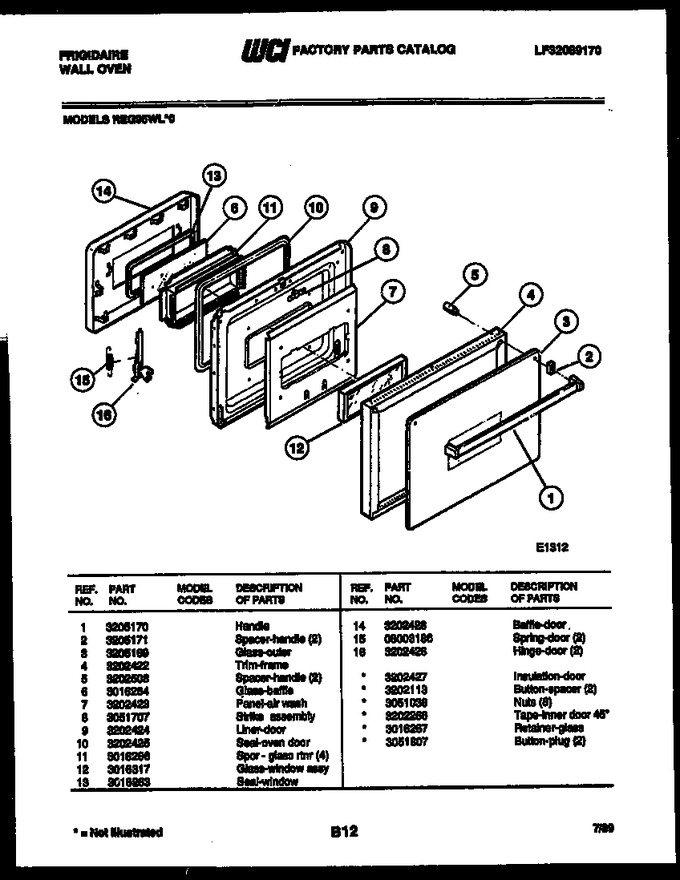

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205170		Handle		Appelez-nous	-
2	3205171		Spacer - Handle (2)		Appelez-nous	-
3	3205169		Glass-outer		Appelez-nous	-
4	3202422		Trim-frame		Appelez-nous	-
5	3202508		Spacer - Handle (2)		Appelez-nous	-
6	3016264		Glass-baffle		Appelez-nous	-
7	3202423		Panel-air Wash		Appelez-nous	-
8	3051707		Strike Assembly		Appelez-nous	-
9	3202424		Liner-door		Appelez-nous	-
10	3202425		Seal-oven Door		Appelez-nous	-
11	3016266		Spcr-glass Rtnr (4)		Appelez-nous	-
12	3016317		Glass - Window Assy		Appelez-nous	-
13	3016263		Seal - Window				$ 66.15
14	3202428		Baffle-door		Appelez-nous	-
15	08003186		Spring-door (2)		Appelez-nous	-
16	3202426		Hinge - Door (2)		Appelez-nous	-
*10029	3202427		Insulation-door		Appelez-nous	-
*10029	3202113		Button - Spacer (2)		Appelez-nous	-
*10029	3051038		Nuts (8)		Appelez-nous	-
*10030	3051807		Button, Plug (2)		Appelez-nous	-
*10030	3016267		Retainer-glass		Appelez-nous	-
*10030	3202266		Tape - Inner Door 45``		Appelez-nous	-
