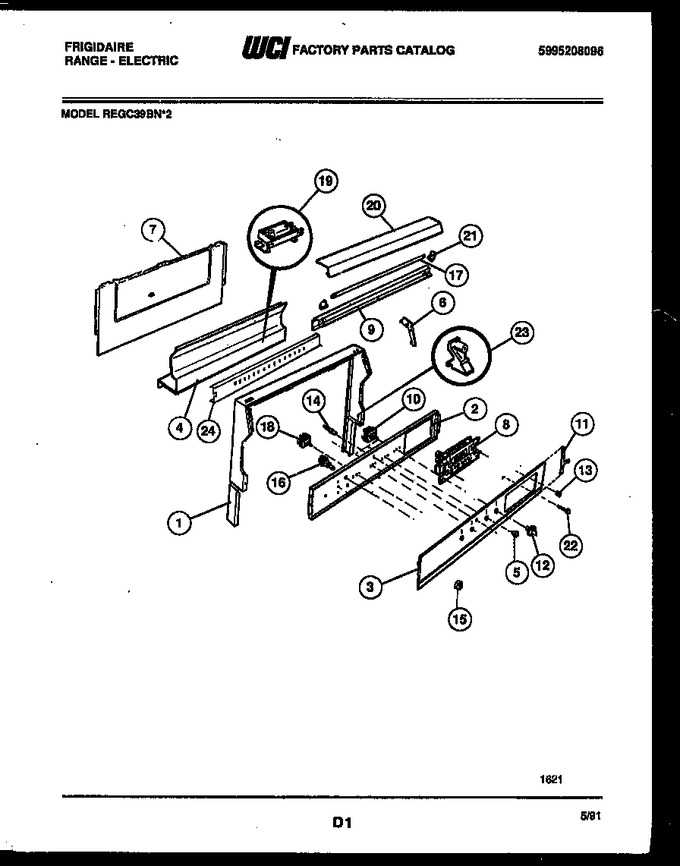

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131280 | Trim-wrapper |
|
- | |||||
| 2 | 5303272841 | Plate-instr Mtg |
|
- | |||||
| 3 | 5303271602 | Panel-glass Ctl |
|
- | |||||
| 4 | 5303271557 | Trim-lower Spl |
|
- | |||||
| 5 | 3204745 | Bushing-cont Shaft |
|
- | |||||
| 6 | 3131267 | Cap-end Lh |
|
- | |||||
| 7 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 8 | 5303271427 | Eoc |
|
- | |||||
| 9 | 3131277 | Sprt-flu Recpt Mtg |
|
- | |||||
| 10 | 3206431 | Sw-top 6`` (2) |
|
- | |||||
| 11 | 3131240 | Trim-glass Ret (2) |
|
- | |||||
| 12 | 5303210881 | Knob-top Elements (3) |
|
- | |||||
| 13 | 5303210918 | Knob-clock |
|
- | |||||
| 14 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 15 | 5303011507 | Bezel, Switch (2) |
|
$ 21.47 | |||||
| 16 | 5303200479 | Sw-oven Light |
|
$ 7.04 | |||||
| 17 | 3131275 | Bulb-fluorescent |
|
$ 49.40 | |||||
| 18 | 5303200480 | Sw-fluor Light |
|
$ 125.53 | |||||
| 19 | 5303051115 | Ballast |
|
- | |||||
| 20 | 5303210968 | Trim-canopy |
|
- | |||||
| 21 | 3051222 | Recpt-fluor Lt Lh |
|
- | |||||
| 22 | 5303210917 | Button-elec Clock (8) |
|
- | |||||
| 23 | 5303131237 | Support, Backguard |
|
- | |||||
| 24 | 5303211001 | Trim-vent |
|
- | |||||
| 10A | 3206430 | Sw-top 8`` (1) |
|
- | |||||
| 10B | 5303271568 | Sw-top Dual 9`` (1) |
|
- | |||||
| 12A | 5303210880 | Knob-top Ele Dual (1) |
|
- | |||||
| 14A | 3201726 | Indicator Light-oven (1) |
|
- | |||||
| 21A | 3051223 | Recpt-fluor Lt Rh |
|
- | |||||
| 6A | 3131268 | Cap-end Rh |
|
- |
