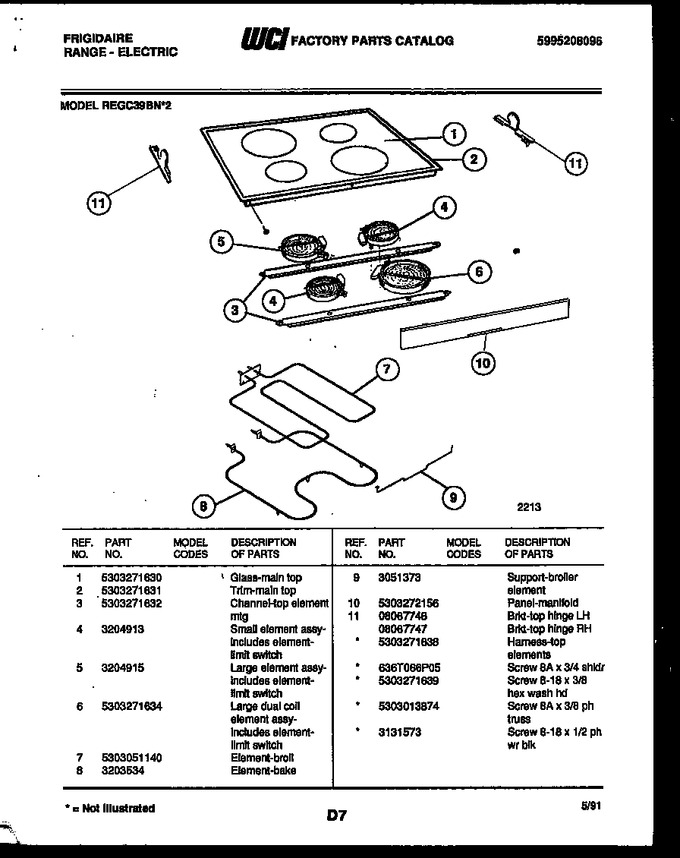

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271630 | Glass-main Top |
|
- | |||||
| 2 | 5303271631 | Trim-main Top |
|
- | |||||
| 3 | 5303271632 | Channel-top Element Mtg |
|
- | |||||
| 4 | 3204913 | Small Element Assy-includes Element-limit Switch |
|
- | |||||
| 5 | 3204915 | Large Element Assy-includes Element-limit Switch |
|
- | |||||
| 6 | 5303271634 | Large Dual Coil Element Assy-includes Element-limit Swit |
|
- | |||||
| 7 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 8 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 9 | 3051373 | Support-broiler Element |
|
- | |||||
| 10 | 5303272156 | Panel-manifold |
|
- | |||||
| 11 | 08067746 | Brkt-top Hinge Lh |
|
- | |||||
| *47205 | 3131573 | Screw 8-18 X 1/2 Ph Wr Blk |
|
- | |||||
| *47205 | 636T066P05 | Screw 8a X 3/4 Shldr |
|
- | |||||
| *47205 | 5303271639 | Screw 8-18 X 3/8 Hex Wash Hd |
|
- | |||||
| *47205 | 5303013874 | Screw 8a X 3/8 Ph Truss |
|
$ 5.04 | |||||
| *47205 | 5303271638 | Harness-top Elements |
|
- | |||||
| 11A | 08067747 | Brkt-top Hinge Rh |
|
- |
