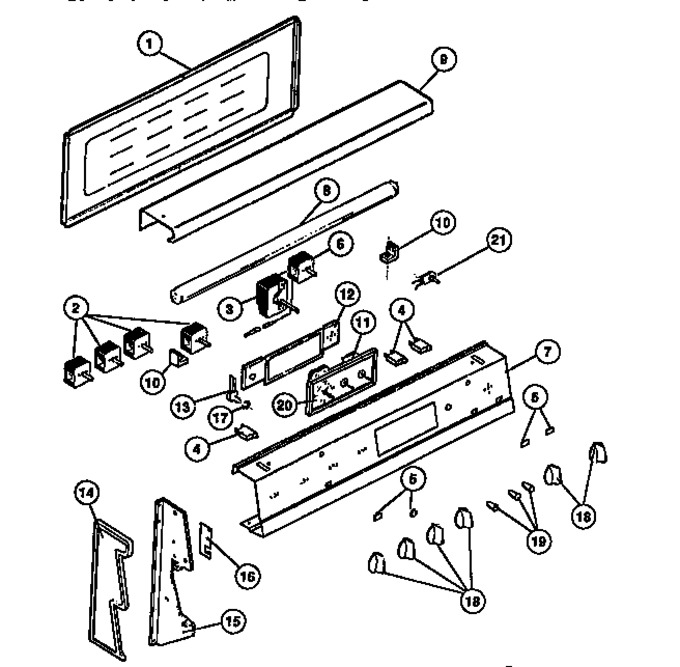

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Cover, Wire.		Appelez-nous	-
2	5301313767		Switch, S/u Lg.		Appelez-nous	-
3	5308014203		Thermostat		Appelez-nous	-
4	3206088		Light, Ind S/u		Appelez-nous	-
5	5308006417		Lens, Ind Light (4)				$ 19.06
6	5308015771		Switch, Select		Appelez-nous	-
7	3203186		Panel, Backguard		Appelez-nous	-
8	5308012712		Bulb-fluorescent		Appelez-nous	-
9	5308016520		Shield-light		Appelez-nous	-
10	08012748		Bracket, Lamp (2)		Appelez-nous	-
11	08012577		Clock		Appelez-nous	-
12	08015861		Bracket, Clock		Appelez-nous	-
13	5308012754		Switch, Fluorescent		Appelez-nous	-
14	08012745		End Cap, Rh		Appelez-nous	-
15	08015966		Supt, Backguard Rh		Appelez-nous	-
16	5308012538		Bracket, Hinge (2)		Appelez-nous	-
17	08003125		Nut, Switch Mtg		Appelez-nous	-
18	5308015741		Knob, S/u (6)				$ 91.02
19	3016387		Knob-clock (3)		Appelez-nous	-
20	5308004154		Glass, Clock		Appelez-nous	-
21	3205397		Switch, Oven Light		Appelez-nous	-
14A	08012746		End Cap, Lh		Appelez-nous	-
15A	08015967		Supt, Backguard Lh		Appelez-nous	-
2A	5303051540		Switch, S/u Sm (2)		Appelez-nous	-
2B	5308014258		Switch, S/u Auto		Appelez-nous	-
4A	08012515		Light, Ind Oven		Appelez-nous	-
4B	5308012563		Light, Ind Clean (2)		Appelez-nous	-
