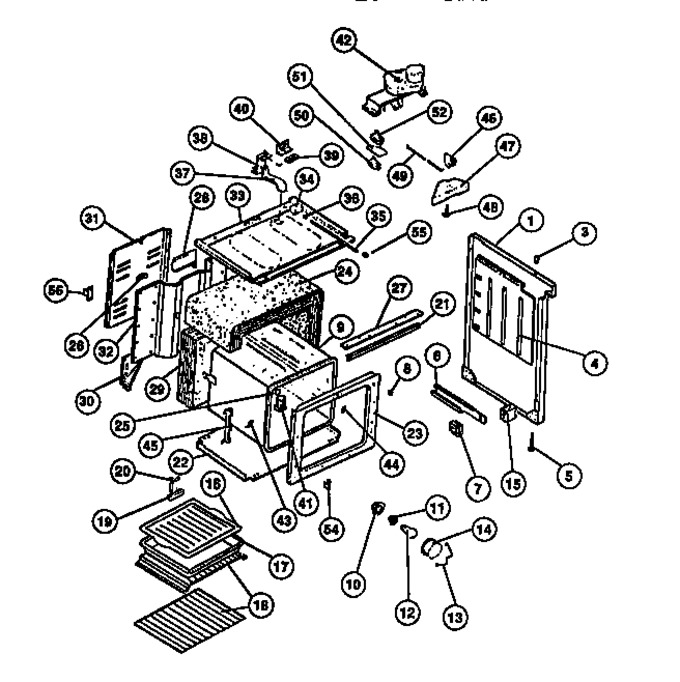

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel, Cook-master, Switche
03 - Oven Door Panels
04 - Oven Liner, Side Panels
05 - Cook Top
06 - Surface Units, Drip Pans, Elements
07 - Storage Drawer
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insul (2) |
|
- | |||||
| 5 | 3205294 | Leg, Leveller (4) |
|
- | |||||
| 6 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 7 | 3051654 | Guide, Drawer Fr (2) |
|
- | |||||
| 8 | 3204817 | Plug Button, Oven Light Hole |
|
- | |||||
| 9 | 3206079 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 12 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 13 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 15 | 3051653 | Spacer, Drwr Rail (2) |
|
- | |||||
| 16 | 3206091 | Grille, Broiler |
|
- | |||||
| 17 | 3205539 | Pan, Broiler |
|
- | |||||
| 18 | 5303131973 | Rack, Oven Regular |
|
- | |||||
| 19 | 5303051098 | Terminal Block |
|
- | |||||
| 20 | K1145190 | Strap-ground |
|
- | |||||
| 21 | 5303207391 | Support-subtop |
|
- | |||||
| 22 | 3206275 | Panel, Bottom |
|
- | |||||
| 23 | 5303207390 | Front, Oven |
|
- | |||||
| 24 | 5303051630 | Insul, Oven Wrap |
|
- | |||||
| 25 | 3016334 | Plug Button, Thermo Bulb Hole |
|
- | |||||
| 26 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 27 | 5303207389 | Bracket, Top |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 5303051630 | Insul, Oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 5303051856 | Wire, Cover |
|
- | |||||
| 32 | 3205757 | Back, Range |
|
- | |||||
| 33 | K005025704 | Panel, Subtop |
|
- | |||||
| 34 | W10169313 | Switch, Door (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 35 | 3051645 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 37 | 3051655 | Tube, Oven Vent |
|
- | |||||
| 38 | 3051656 | Bracket, Vent Tube |
|
- | |||||
| 39 | 3051666 | Gasket, Oven Vent Tube |
|
- | |||||
| 40 | 3051643 | Bracket, Dr Latch Sw |
|
- | |||||
| 41 | 3205683 | Vent Tube |
|
- | |||||
| 42 | 5308015743 | Latch, Motor |
|
$ 211.92 | |||||
| 43 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 44 | 3203082 | Cover, Seam |
|
- | |||||
| 45 | 3201631 | Channel Assy, Hinge (2) |
|
$ 58.22 | |||||
| 46 | 3202387 | Latch, Door |
|
- | |||||
| 47 | 3051647 | Housing, Dr Latch |
|
- | |||||
| 48 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 5308006582 | Switch, Lower |
|
- | |||||
| 51 | 08003090 | Insulator |
|
- | |||||
| 52 | 5303051740 | Switch, Upper |
|
- | |||||
| 54 | 3019063 | Retainer-door |
|
- | |||||
| 55 | 3051251 | Cover, Rod End |
|
- | |||||
| 56 | 3017556 | Ballast |
|
- | |||||
| 18A | 08014219 | Rack-oven, Offset |
|
- | |||||
| 1A | 5308012529 | Side Pnl, Rh (almd) |
|
- | |||||
| 1D | 5308012530 | Side Pnl, Lh (almd) |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 56A | 3934063 | Anti, Tip Kit (ni) |
|
- | |||||
| 56B | 5300009126 | Clip |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
