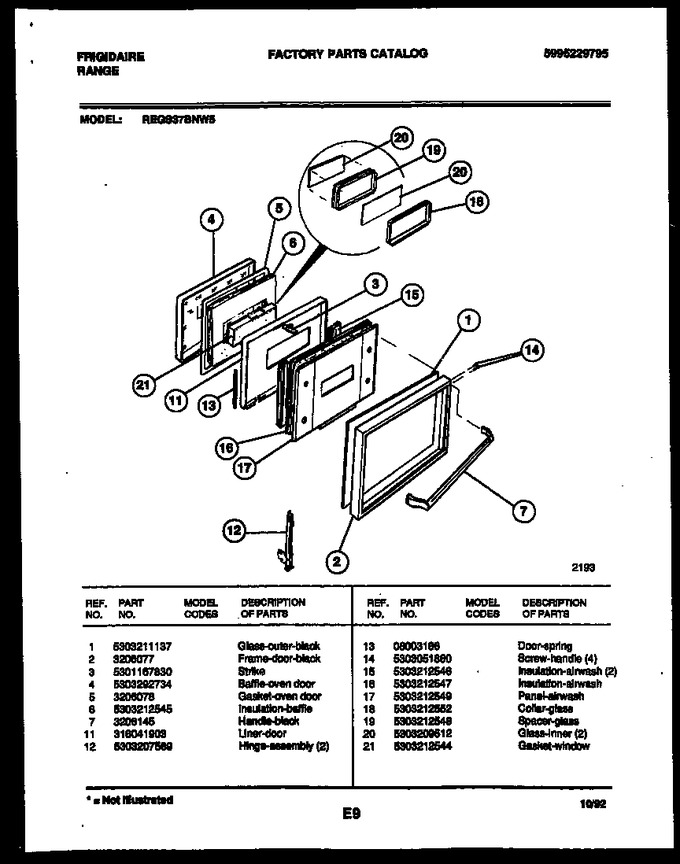

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211137 | Glass-outer (black) |
|
- | |||||
| 2 | 3206077 | Frame-door (black) |
|
- | |||||
| 3 | 5301167830 | Strike |
|
- | |||||
| 4 | 5303292734 | Baffle-oven Door |
|
- | |||||
| 5 | 3206078 | Gasket, Oven Door |
|
- | |||||
| 6 | 5303212545 | Insulation-baffle |
|
- | |||||
| 7 | 3206145 | Handle-black |
|
- | |||||
| 11 | 316041903 | Liner-door |
|
- | |||||
| 12 | 5303207589 | Hinge-assembly (2) |
|
- | |||||
| 13 | 08003186 | Door - Spring |
|
- | |||||
| 14 | 5303051860 | Screw, Handle (4) |
|
- | |||||
| 15 | 5303212546 | Insulation-airwash (2) |
|
- | |||||
| 16 | 5303212547 | Insulation- Airwash |
|
- | |||||
| 17 | 5303212549 | Panel-airwash |
|
- | |||||
| 18 | 5303212552 | Collar-glass |
|
- | |||||
| 19 | 5303212548 | Spacer-glass |
|
- | |||||
| 20 | 5303209512 | Glass-inner (2) |
|
$ 150.41 | |||||
| 21 | 5303212544 | Gasket-window |
|
- |
