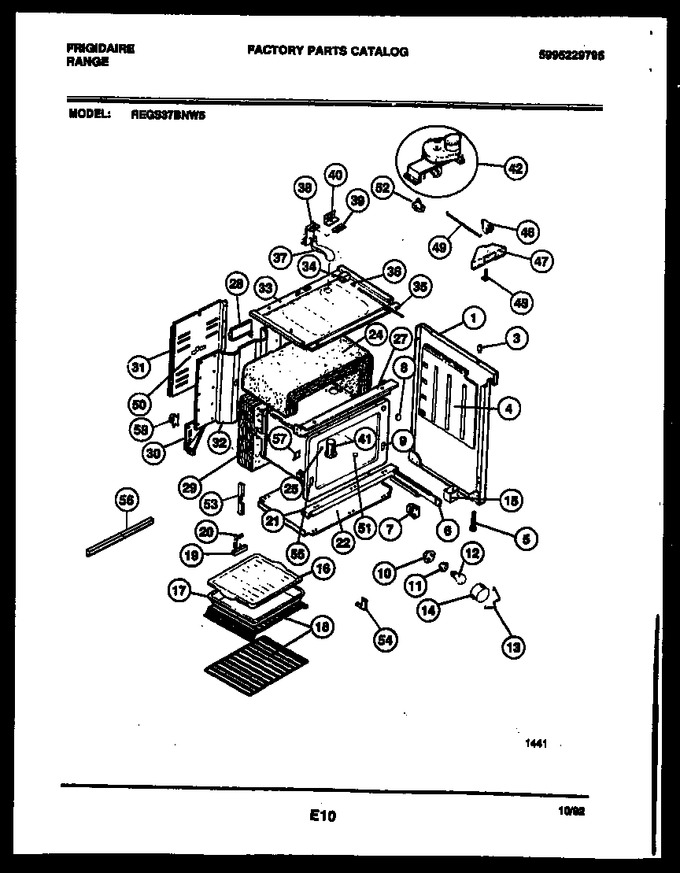

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012529 | Side Panel Rh-almd |
|
- | |||||
| 3 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insul (2) |
|
- | |||||
| 5 | 5303205540 | Leg Leveler (4) |
|
- | |||||
| 6 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 7 | 3051654 | Guide, Drawer Fr (2) |
|
- | |||||
| 8 | 3051784 | Plug Button-oven Light Hole |
|
- | |||||
| 9 | 5303293178 | Oven Liner |
|
- | |||||
| 10 | 5303271606 | Cup-oven Light |
|
- | |||||
| 11 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 12 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 13 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 15 | 3051653 | Spacer, Drwr Rail (2) |
|
- | |||||
| 16 | 5303293176 | Grille - Broiler |
|
- | |||||
| 17 | 5303292688 | Pan-broiler |
|
- | |||||
| 18 | 5303281625 | Rack - Oven Regular |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 5301145190 | Strap, Ground |
|
- | |||||
| 21 | 3205257 | Channel-oven Support Lower |
|
- | |||||
| 22 | 3206275 | Panel, Bottom |
|
- | |||||
| 24 | 3203029 | Insul-oven Wrap |
|
- | |||||
| 25 | 3016334 | Plug Button, Thermo Bulb Hole |
|
- | |||||
| 27 | 5303207389 | Channel-oven Support Upper |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 5303051630 | Insul, Oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 5303051856 | Wire, Cover |
|
- | |||||
| 32 | 3205757 | Back, Range |
|
- | |||||
| 33 | 5303292687 | Panel - Subtop |
|
- | |||||
| 34 | W10169313 | Switch, Door (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 35 | 3051645 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 37 | 3051655 | Tube, Oven Vent |
|
- | |||||
| 38 | 3051656 | Bracket, Vent Tube |
|
- | |||||
| 39 | 3051666 | Gasket, Oven Vent Tube |
|
- | |||||
| 40 | 3051643 | Bracket-dr Latch Switch |
|
- | |||||
| 41 | 3205683 | Vent Tube |
|
- | |||||
| 42 | 5303269766 | Latch-motor |
|
- | |||||
| 46 | 3051648 | Latch-door |
|
- | |||||
| 47 | 3051647 | Housing, Dr Latch |
|
- | |||||
| 48 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 51 | 3202082 | Cover-front Drum Seal |
|
- | |||||
| 53 | 3201631 | Channel-assy Hinge |
|
$ 58.22 | |||||
| 54 | 3019063 | Retainer-door |
|
- | |||||
| 55 | 316042101 | Front - Oven |
|
- | |||||
| 56 | 5303207391 | Support-subtop |
|
- | |||||
| 57 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 58 | 3017556 | Ballast |
|
- | |||||
| *68784 | 19100210083 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| 18A | 08014219 | Rack-oven, Offset |
|
- | |||||
| 1A | 5308012530 | Side Panel Lh-almd |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 50A | 5303208888 | Probe (non-illustrated) |
|
- | |||||
| 55A | 3934063 | Anti-tip Kit, (non-illustrated) |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
