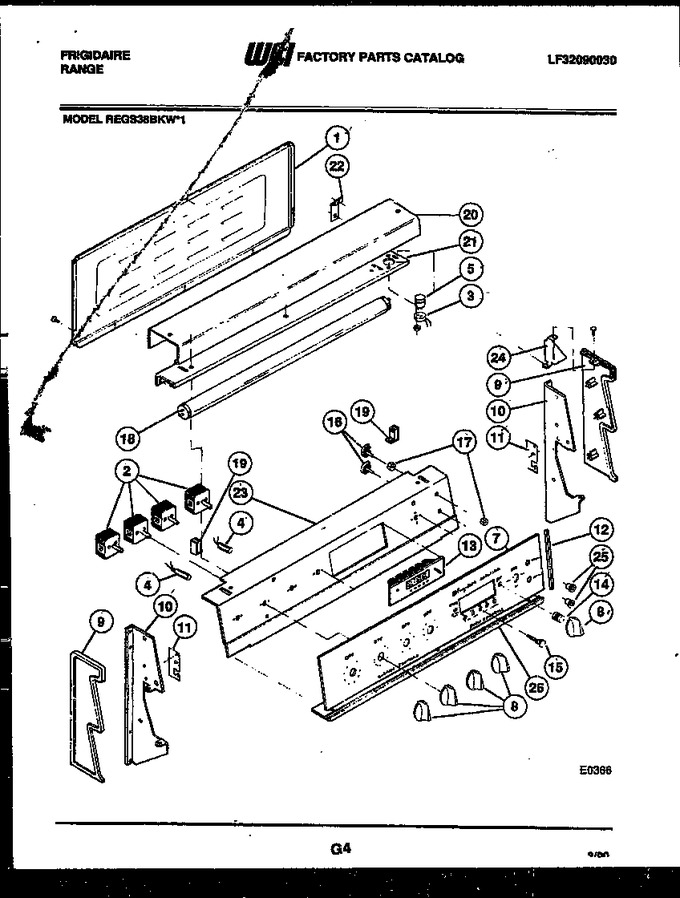

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5303015702 | Switch S/u Small (2) |
|
- | |||||
| 3 | 3201542 | Base-fluor Light Starter |
|
- | |||||
| 4 | 08017085 | Light-pilot Auto S/u |
|
- | |||||
| 5 | 3017795 | Starter-fluor Light |
|
- | |||||
| 7 | 3205216 | Panel-control |
|
- | |||||
| 8 | 5308015741 | Knobs (4) |
|
$ 91.02 | |||||
| 9 | 08015975 | End Cap, Lh |
|
- | |||||
| 10 | 08015966 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 08017099 | Trim-cont Panel (2) |
|
- | |||||
| 13 | 3205213 | Clock |
|
- | |||||
| 14 | 3204590 | Knob-clock |
|
- | |||||
| 15 | 3204586 | Button-clock (7) |
|
- | |||||
| 16 | 5308003383 | Switch-fluor Light & Oven Light (2) |
|
- | |||||
| 17 | 3051832 | Nut-switch (2) |
|
- | |||||
| 18 | 5308012712 | Bulb-fluor |
|
- | |||||
| 19 | 08012748 | Holder-fluor Light (2) |
|
- | |||||
| 20 | 08017091 | Shield-light |
|
- | |||||
| 21 | 08017089 | Top-backguard |
|
- | |||||
| 22 | 08017090 | Hinge-light Shield, (2) |
|
- | |||||
| 23 | 3017796 | Bracket-cont. Mounting |
|
- | |||||
| 24 | 3017797 | Support-end Cap (2) |
|
- | |||||
| 25 | 5303016305 | Bezel-switch (2) |
|
- | |||||
| 26 | 08015987 | Base, Backguard |
|
- | |||||
| *10947 | 3205136 | Label S/c |
|
- | |||||
| 10A | 08015967 | Support Lh |
|
- | |||||
| 2A | 5308017080 | Switch S/u Large |
|
- | |||||
| 2B | 5308017083 | Switch S/u Auto |
|
- | |||||
| 9A | 08015974 | End Cap, Rh |
|
- |
