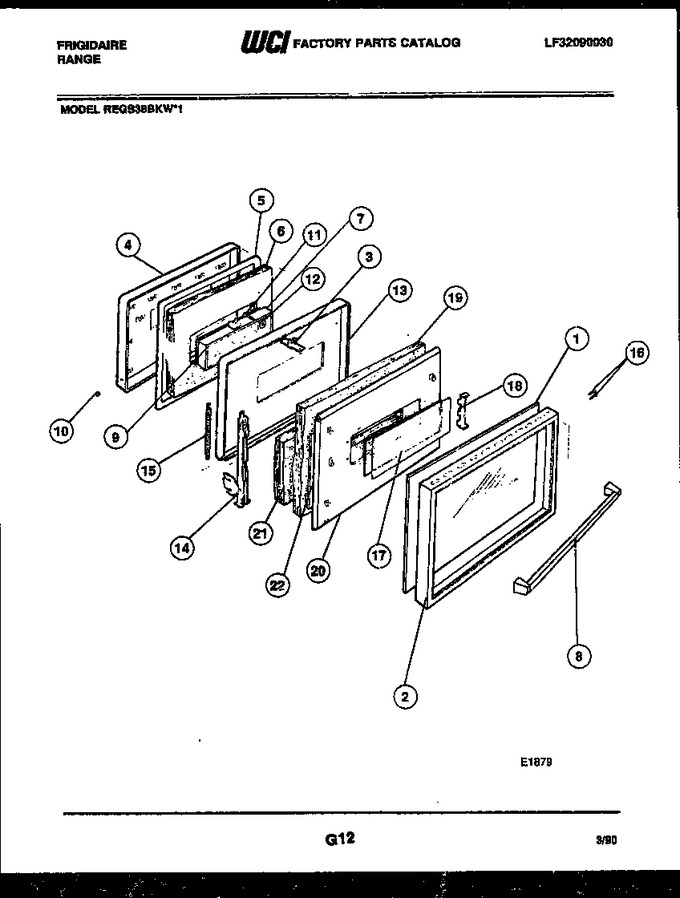

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308012546		Glass, Outer		Appelez-nous	-
2	3206077		Frame, Door		Appelez-nous	-
3	K1167830		Strike		Appelez-nous	-
4	3017634		Baffle, Oven Door		Appelez-nous	-
5	3206078		Gasket, Oven Door		Appelez-nous	-
6	3008673		Insulation, Baffle		Appelez-nous	-
7	3205235		Window Assembly		Appelez-nous	-
8	3206145		Handle		Appelez-nous	-
9	3051706		Gasket, Window		Appelez-nous	-
10	3051807		Button Plug		Appelez-nous	-
11	08004957		Screw 10 X 24		Appelez-nous	-
12	08002847		Washer-padded		Appelez-nous	-
13	3017530		Liner, Door		Appelez-nous	-
14	5303207589		Hinge, Assy (2)		Appelez-nous	-
15	5308003186		Door, Spring		Appelez-nous	-
16	5303051860		Screw, Handle (4)		Appelez-nous	-
17	5303051713		Glass, Inner		Appelez-nous	-
18	3051714		Retainer, Glass (2)		Appelez-nous	-
19	K1322652		Insulation, Airwash		Appelez-nous	-
20	3051712		Panel, Airwash		Appelez-nous	-
21	3008677		Insulation, Liner		Appelez-nous	-
22	3051862		Foil, Aluminum		Appelez-nous	-
