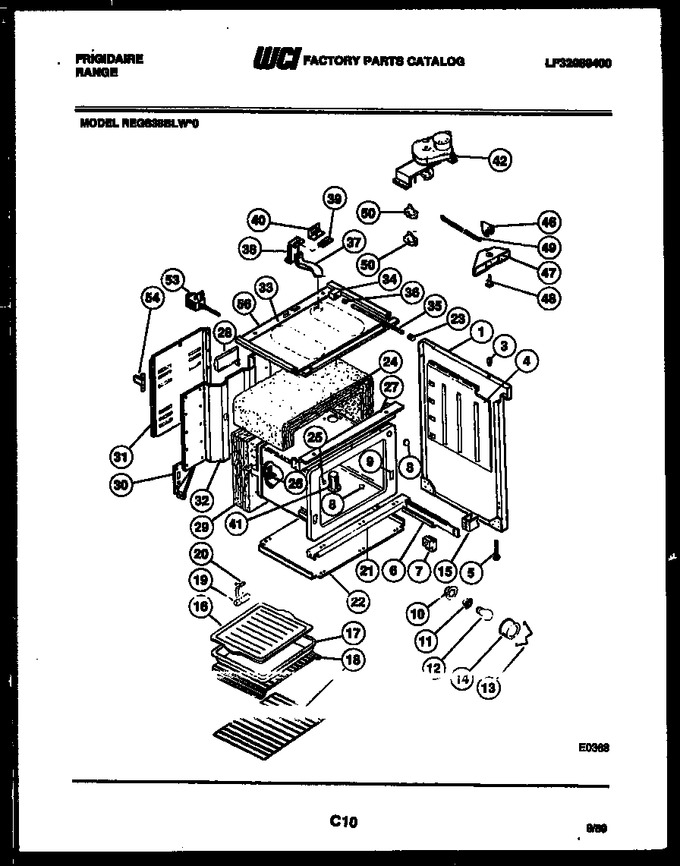

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08012529 | Side Panel-rh Almond |
|
- | |||||
| 3 | 08003107 | Bumper - Cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insulation (2) |
|
- | |||||
| 5 | 3205294 | Leg, Leveller (4) |
|
- | |||||
| 6 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 7 | 08003103 | Guide - Drawer Front |
|
- | |||||
| 8 | 08003144 | Plug-button 3/4`` (2) |
|
- | |||||
| 9 | 3205272 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 08011085 | Receptacle - Light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 08011087 | Retainer - Lens |
|
- | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 15 | 08011055 | Spacer-drawer Rail (2) |
|
- | |||||
| 16 | 3205234 | Grille, Broiler |
|
- | |||||
| 17 | 3205232 | Pan, Broiler |
|
- | |||||
| 18 | 3131973 | Rack - Regular |
|
- | |||||
| 19 | 06563359 | Terminal Block |
|
- | |||||
| 20 | 08003146 | Strap - Ground |
|
- | |||||
| 21 | 3200927 | Channel - Oven Support Lower |
|
- | |||||
| 22 | 3203574 | Panel - Bottom |
|
- | |||||
| 23 | 08067758 | Cover - Rod End |
|
$ 2.31 | |||||
| 24 | 3051628 | Insulation-oven Wrap |
|
- | |||||
| 25 | 3051784 | Plug-button-therm Bulb Hole |
|
- | |||||
| 26 | 08017097 | Probe-oven Temp |
|
- | |||||
| 27 | 3203178 | Channel, Oven Support Upper |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 3051630 | Insulation-oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 3051856 | Wire Cover |
|
- | |||||
| 32 | 3205259 | Back, Range |
|
- | |||||
| 33 | K005025704 | Panel, Subtop |
|
- | |||||
| 34 | 3205260 | Switch - Door |
|
- | |||||
| 35 | 08007445 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 37 | 08014259 | Vent-tube Upper |
|
- | |||||
| 38 | 08014260 | Bracket - Vent Tube |
|
- | |||||
| 39 | 3051666 | Gasket, Oven Vent Tube |
|
- | |||||
| 40 | 3017800 | Bracket-door Latch Switch |
|
- | |||||
| 41 | 08012574 | Vent-tube |
|
- | |||||
| 42 | 3202381 | Motor - Latch |
|
- | |||||
| 46 | 3202387 | Latch, Door |
|
- | |||||
| 47 | 3019074 | Housing-door Latch |
|
- | |||||
| 48 | 08003095 | Axle |
|
- | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 3202393 | Switch-lower |
|
- | |||||
| 53 | 3204594 | Thermostat-limit |
|
- | |||||
| 54 | 3017556 | Ballast |
|
- | |||||
| 56 | 3205257 | Channel, Sub Top |
|
- | |||||
| *26360 | 3934063 | Anti-tip Kit |
|
- | |||||
| 18A | 08014219 | Rack-offset |
|
- | |||||
| 1A | 08012530 | Side Panel-lh Almond |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
