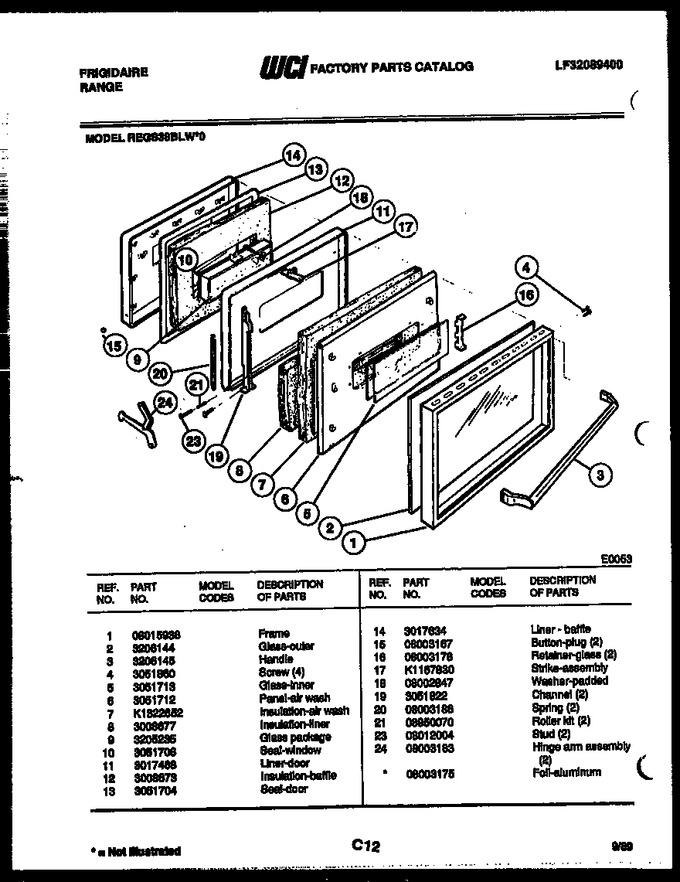

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08015938		Frame		Appelez-nous	-
2	3206144		Glass-outer		Appelez-nous	-
3	3206145		Handle		Appelez-nous	-
4	3051860		Screw (4)		Appelez-nous	-
5	3051713		Glass - Inner		Appelez-nous	-
6	3051712		Panel, Airwash		Appelez-nous	-
7	K1322652		Insulation, Airwash		Appelez-nous	-
8	3008677		Insulation, Liner		Appelez-nous	-
9	3205235		Glass, Package		Appelez-nous	-
10	3051706		Seal Window		Appelez-nous	-
11	3017468		Liner, Door		Appelez-nous	-
12	3008673		Insulation, Baffle		Appelez-nous	-
13	3051704		Seal-door		Appelez-nous	-
14	3017634		Liner - Baffle		Appelez-nous	-
15	08003167		Button-plug (2)		Appelez-nous	-
16	08003178		Retainer-glass (2)		Appelez-nous	-
17	K1167830		Strike-assembly		Appelez-nous	-
18	08002847		Washer-padded		Appelez-nous	-
19	3051822		Channel (2)		Appelez-nous	-
20	08003186		Spring (2)		Appelez-nous	-
21	08950070		Roller Kit (2)		Appelez-nous	-
23	08012004		Stud (2)		Appelez-nous	-
24	08003183		Door-hinge Arm		Appelez-nous	-
*26361	08003175		Foil-aluminum		Appelez-nous	-
