SELECT A DIAGRAM
02 - Backguard
03 - Broiler Parts
04 - Cooktop Parts
05 - Drawer Parts
06 - Body Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:

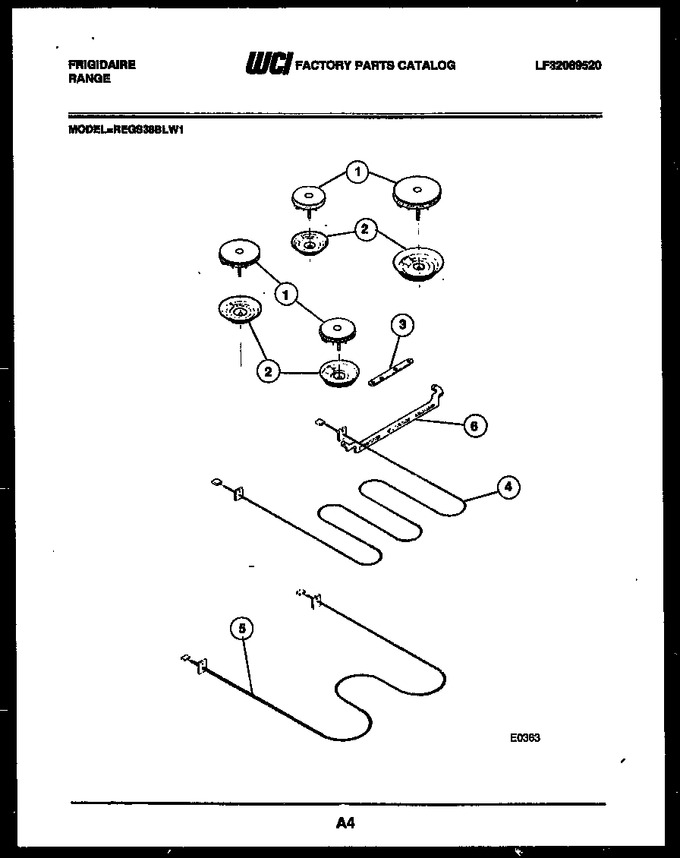

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08014249 | Surface Unit Sm (2) |
|
- | |||||
| 2 | 3051662 | Pan-small (2) |
|
- | |||||
| 3 | 3051620 | Strap, Anti Turn (4) |
|
- | |||||
| 4 | 3051516 | Element - Broil |
|
- | |||||
| 5 | 3051519 | Element - Bake |
|
- | |||||
| 6 | 3205756 | Hanger, Broil Element |
|
- | |||||
| 1A | 08014263 | Surface Unit Large |
|
- | |||||
| 1B | 3051143 | Surface Unit-auto |
|
- | |||||
| 2A | K005129602 | Pan-large |
|
- | |||||
| 2B | K005129701 | Pan - Auto |
|
- |
