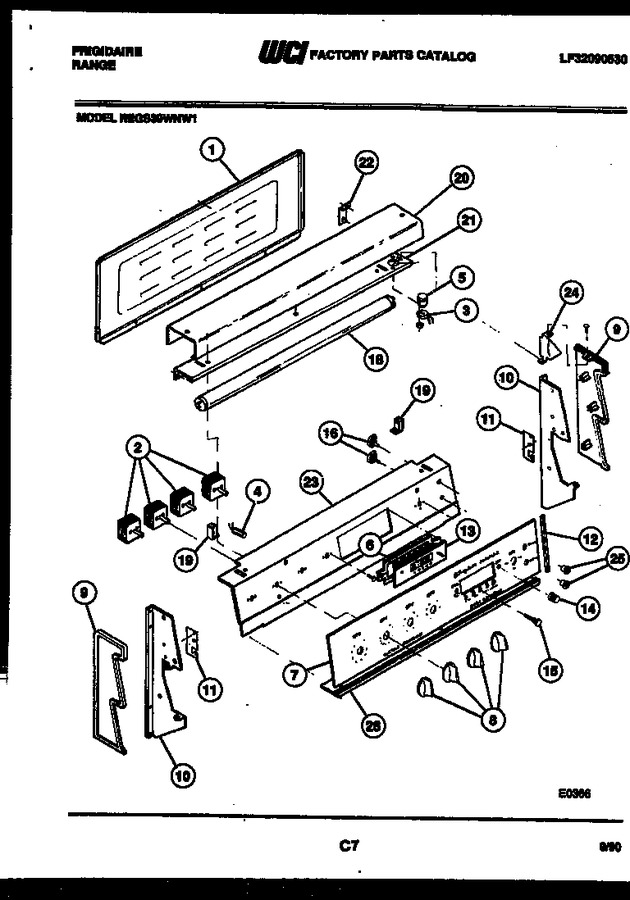

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Cover, Wire.		Appelez-nous	-
2	5303015702		Switch S/u Small (2)		Appelez-nous	-
3	3201542		Base-fluor Light Starter		Appelez-nous	-
4	08017085		Light-pilot Auto S/u		Appelez-nous	-
5	3201543		Starter - Fluor Light		Appelez-nous	-
6	3206118		Bracket-clock Mtg		Appelez-nous	-
7	5303211913		Panel - Control - Glass		Appelez-nous	-
8	3206170		Knobs (4) White/plum		Appelez-nous	-
9	08015975		End Cap, Lh		Appelez-nous	-
10	08015966		Support Rh		Appelez-nous	-
11	3017797		Bracket - Hinge (2)		Appelez-nous	-
12	3206174		Trim - Cont Panel (2) White		Appelez-nous	-
13	3205213		Clock		Appelez-nous	-
14	3202625		Knob - Clock White		Appelez-nous	-
15	3203026		Button - Clock (8) White		Appelez-nous	-
16	5303211969		Switch - Fluor Light & Oven Light (2)		Appelez-nous	-
18	5308012712		Bulb-fluor		Appelez-nous	-
19	08012748		Holder-fluor Light (2)		Appelez-nous	-
20	3206172		Shield-light		Appelez-nous	-
21	08017089		Top-backguard		Appelez-nous	-
22	08017090		Hinge-light Shield, (2)		Appelez-nous	-
23	3017796		Bracket-cont. Mounting		Appelez-nous	-
24	3017797		Support-end Cap (2)		Appelez-nous	-
25	3206171		Bezel - Switch (2) White		Appelez-nous	-
26	08015987		Base, Backguard		Appelez-nous	-
*37864	3205136		Label S/c		Appelez-nous	-
10A	5308015967		Support - Lh		Appelez-nous	-
2A	5308017080		Switch S/u Large		Appelez-nous	-
2B	5308017083		Switch S/u Auto		Appelez-nous	-
9A	08015974		End Cap, Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
