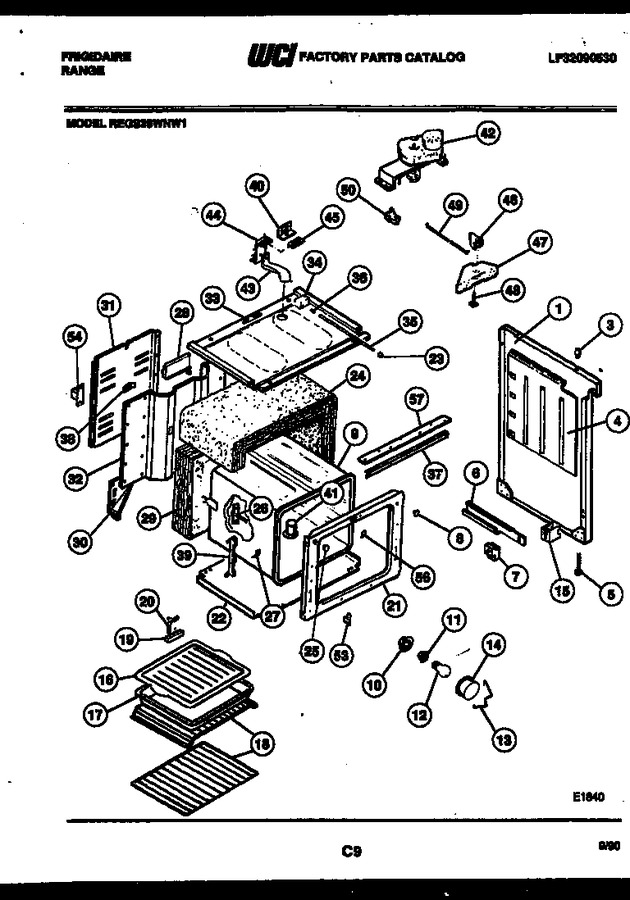

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012527 | Side Pnl, Rh (white) |
|
- | |||||
| 3 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insul (2) |
|
- | |||||
| 5 | 5303205540 | Leg - Leveller |
|
- | |||||
| 6 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 7 | 3051654 | Guide, Drawer Front (2) |
|
- | |||||
| 8 | 3204817 | Plug Button, Oven Light Hole |
|
- | |||||
| 9 | 5303207514 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 12 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 13 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 15 | 3051653 | Spacer, Drawer Rail (2) |
|
- | |||||
| 16 | 3206091 | Grille, Broiler |
|
- | |||||
| 17 | 3205539 | Pan, Broiler |
|
- | |||||
| 18 | 5303131973 | Rack, Regular |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 5301145190 | Strap, Ground |
|
- | |||||
| 21 | 5303207390 | Frame-front |
|
- | |||||
| 22 | 3206275 | Panel, Bottom |
|
- | |||||
| 23 | 08067758 | Cover - Rod End |
|
$ 2.31 | |||||
| 24 | 5303051630 | Insulation, Oven Wrap |
|
- | |||||
| 25 | 3016334 | Plug-button-therm. Bulb Hole |
|
- | |||||
| 26 | 5303208888 | Probe-oven Temp |
|
- | |||||
| 27 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 5303051630 | Insulation, Oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 5303051856 | Wire, Cover |
|
- | |||||
| 32 | 3205757 | Back, Range |
|
- | |||||
| 33 | K005025704 | Panel, Subtop |
|
- | |||||
| 34 | 3205260 | Switch - Door |
|
- | |||||
| 35 | 08007445 | Push Rod Switch |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 37 | 5303207391 | Support-subtop |
|
- | |||||
| 38 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 39 | 3201631 | Hinge - Assy (2) |
|
$ 58.22 | |||||
| 40 | 3017800 | Brkt-door Latch Switch |
|
- | |||||
| 41 | 3205683 | Vent Tube |
|
- | |||||
| 42 | 3202381 | Motor - Latch |
|
- | |||||
| 43 | 3051655 | Tube-vent Upper |
|
- | |||||
| 44 | 3051656 | Bracket, Vent Tube |
|
- | |||||
| 45 | 3051666 | Gasket-vent Tube |
|
- | |||||
| 46 | 3051648 | Latch-door |
|
- | |||||
| 47 | 3051647 | Housing-door Latch |
|
- | |||||
| 48 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 3202393 | Switch - Limit (2) |
|
- | |||||
| 53 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 54 | 3017556 | Ballast |
|
- | |||||
| 56 | 3202082 | Cover Seam |
|
- | |||||
| 57 | 5303207389 | Bracket, Top |
|
- | |||||
| 18A | 08014219 | Rack-offset |
|
- | |||||
| 1A | 5308012528 | Side Pnl, Lh (white) |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 56A | 3934063 | Anti-tip Kit, (non-illustrated) |
|
- | |||||
| 56B | 5303211407 | Screw (2) Black (non-illustrated) |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
