Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3051133 Drawer, Utility Appelez-nous -
2 3051163 Glide (2) In-Stock Immediately $ 19.41

3 3131324 Panel, Drwr., Black Appelez-nous -
4 3131125 Handle Appelez-nous -
5 3131975 Shield-panel Appelez-nous -
6 3131387 Fstnr, Spacer (2) Appelez-nous -
6A 5303051818 Screw (8, 18 X 1/2`` Rh Low Prof) Drawer Assy. (9) (non-illustrated) Appelez-nous -
6B 08067785 Screw (8, 18 X 1/2`` Hex Wsh. Hd.) (2) (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

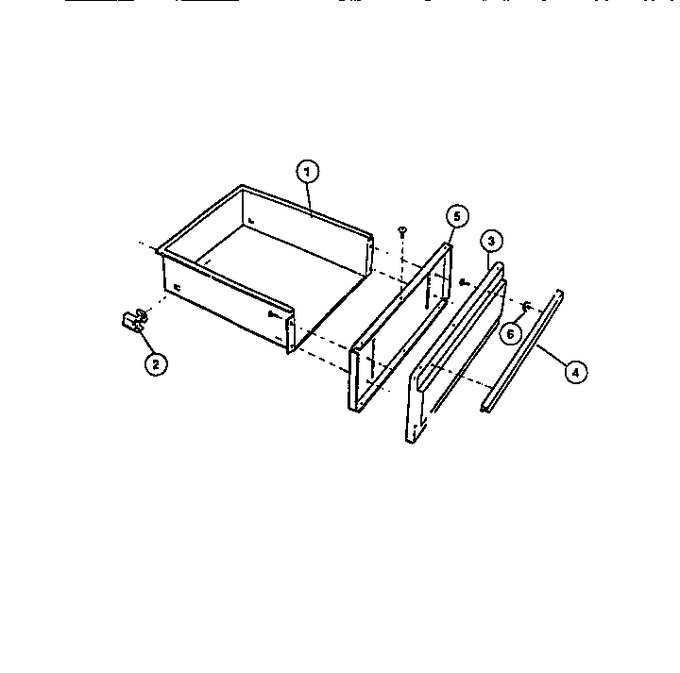

Diagram for REM638BDL6
