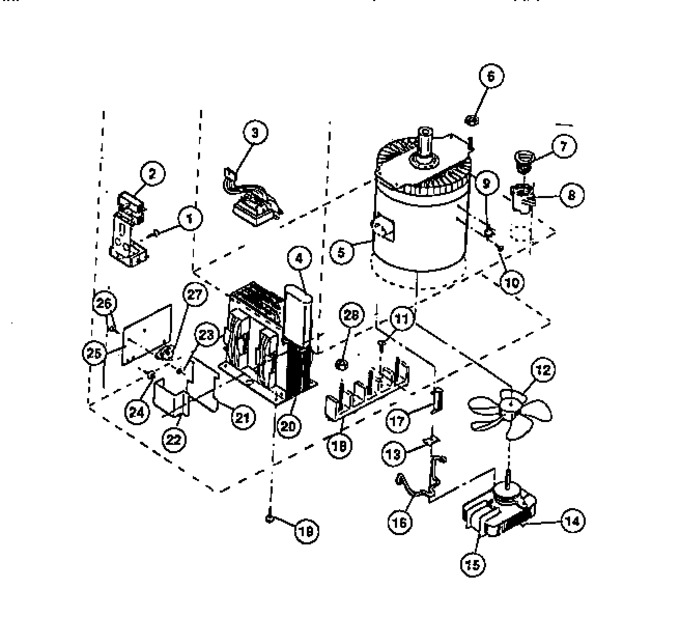

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08010488		Screw (3)		Appelez-nous	-
2	5303912591		Switch Kit		Appelez-nous	-
3	5308010486		Transformer (low Volt )		Appelez-nous	-
4	5308037624		Capacitor		Appelez-nous	-
5	5303204035		Magnetron		Appelez-nous	-
6	5308008918		Nuts (4)		Appelez-nous	-
7	5303200606		Fuse 20 Amp.		Appelez-nous	-
8	5308012055		Receptacle		Appelez-nous	-
9	5308012862		Protector Thermal		Appelez-nous	-
10	5308008925		Screw (2)		Appelez-nous	-
11	08010492		Screw (2)		Appelez-nous	-
12	5303011668		Fan		Appelez-nous	-
13	5303207945		Guide		Appelez-nous	-
14	5303091100		Screw		Appelez-nous	-
15	5303011677		Motor		Appelez-nous	-
16	5308010478		Retainer		Appelez-nous	-
17	5303091303		Rectifier		Appelez-nous	-
18	5304409888		Block   (Replaces: 5306563359)			Immediately	$ 26.69
19	5308008933		Screw (4)		Appelez-nous	-
20	5308014096		Transformer H.v.		Appelez-nous	-
21	08010484		Shield		Appelez-nous	-
22	08010483		Bracket		Appelez-nous	-
23	08009182		Nuts (2)		Appelez-nous	-
24	5303091100		Screw (2)		Appelez-nous	-
25	08010489		Plate		Appelez-nous	-
26	5308008923		Screw (2)		Appelez-nous	-
27	12QBP0508		Triac   (Replaces: 5303912602)				$ 27.14
28	08067783		Nut (6)		Appelez-nous	-
28A	5308010494		Harness W/diode (non-illustrated)		Appelez-nous	-
28B	3091202		Harness Cabinet (non-illustrated)		Appelez-nous	-
28C	08012062		Wire Hi Volt (non-illustrated)		Appelez-nous	-
28D	5303091204		Switch Inf. (non-illustrated)		Appelez-nous	-
28E	5308037894		Harness Main (non-illustrated)		Appelez-nous	-
28F	08037895		Harness Control (non-illustrated)		Appelez-nous	-
28G	5308010478		Rod, Fan Mtr. Supt. (non-illustrated)		Appelez-nous	-
