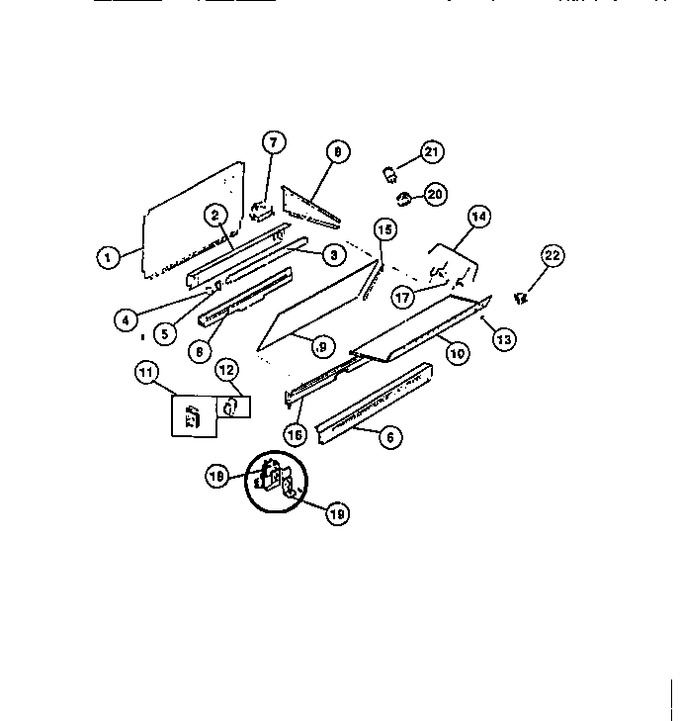

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08067729 | Back, O/u Mid Wall |
|
- | |||||
| 2 | 3018942 | Reflector, Work Lamp |
|
- | |||||
| 3 | 3131275 | Bulb, Fluor (work Light) |
|
$ 49.40 | |||||
| 4 | 08067775 | Insulator, Fluor Lt. Brkt. (2) |
|
- | |||||
| 5 | 537T047S01 | Receptacle, Fluor Light (2) |
|
- | |||||
| 6 | 08067808 | Trim-vent |
|
- | |||||
| 7 | 08010396 | Blwr., Mtr. Assy. |
|
- | |||||
| 8 | 08067830 | Gusset, Support (lh) |
|
- | |||||
| 9 | 08067736 | Glass, Splasher U/o |
|
- | |||||
| 10 | 08012849 | Panel, Splasher U/o |
|
- | |||||
| 11 | 08067730 | Ballast |
|
- | |||||
| 12 | 08067733 | Fstnr., Cable Clamp |
|
- | |||||
| 13 | 5303011507 | Bezel, Switch (2) |
|
$ 21.47 | |||||
| 14 | 3131588 | Harness, O/u Light Switch |
|
- | |||||
| 15 | 08010548 | Trim-o/u Spl. Side Lh |
|
- | |||||
| 16 | 3014435 | Trim, O/u Spl. Gls. Filter |
|
- | |||||
| 17 | 08067832 | Washer, Spring (2) |
|
- | |||||
| 18 | 08067742 | Thermostat |
|
- | |||||
| 19 | 3051348 | Angle, Sppt S/c Thermo |
|
- | |||||
| 15A | 08010549 | Trim-o/u Spl. Side Rh |
|
- | |||||
| 8A | 08067737 | Gusset Support (rh) |
|
- |
