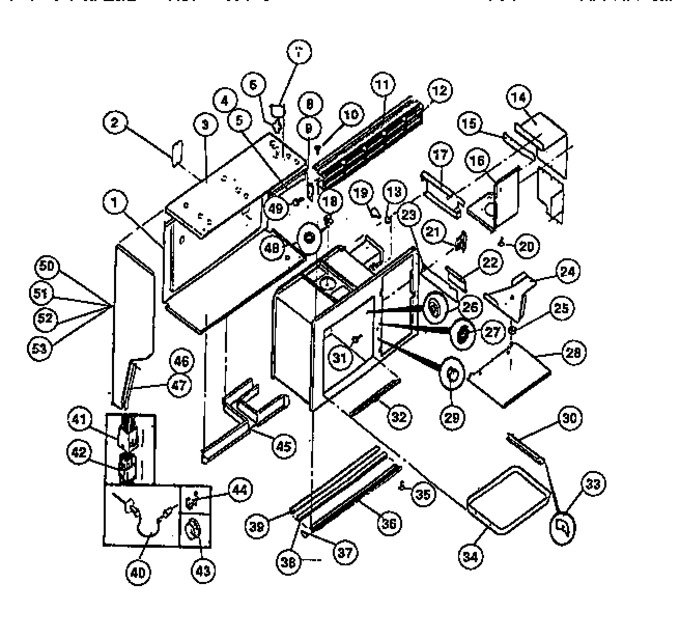

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308037913 | Panel, Back & Btm. |
|
- | |||||
| 2 | 08010540 | Cover |
|
- | |||||
| 3 | 08010537 | Panel, Black |
|
- | |||||
| 4 | 08010535 | Baffle Rh |
|
- | |||||
| 5 | 08010536 | Baffle Lh |
|
- | |||||
| 6 | 5303207739 | Receptacle |
|
- | |||||
| 7 | 08067732 | Cover |
|
- | |||||
| 8 | 530801531 | Cap Rh |
|
- | |||||
| 9 | 5308010532 | Cap Lh |
|
- | |||||
| 10 | 5308010534 | Screw (2) |
|
- | |||||
| 11 | 5308037906 | Trim |
|
- | |||||
| 12 | 08010530 | Trim |
|
- | |||||
| 13 | 5308037639 | Receptacle |
|
- | |||||
| 14 | 08010527 | Cover |
|
- | |||||
| 15 | 5308010526 | Bracket |
|
- | |||||
| 16 | 08010524 | Bracket |
|
- | |||||
| 17 | 08010523 | Panel |
|
- | |||||
| 18 | 5308008977 | Motor |
|
- | |||||
| 19 | 5308037902 | Bulb |
|
- | |||||
| 20 | 636T090P05 | Screw (2) |
|
- | |||||
| 21 | 5308008972 | Switch |
|
- | |||||
| 22 | 5308010522 | Baffle Rh |
|
- | |||||
| 23 | 08010523 | Baffle Lh |
|
- | |||||
| 24 | 5308037917 | Stirrer |
|
- | |||||
| 25 | 5303013270 | Nut |
|
- | |||||
| 26 | 3018416 | Nut |
|
- | |||||
| 27 | 5308010512 | Strike |
|
- | |||||
| 28 | 5303200598 | Cover, Stirrer |
|
- | |||||
| 29 | 5308010513 | Grommet |
|
- | |||||
| 30 | 5303200607 | Glide, Tray (2) |
|
- | |||||
| 31 | 5308037664 | Plugs (8) |
|
- | |||||
| 32 | 5303200630 | Trim, Front |
|
- | |||||
| 33 | 5308010515 | Nut (4) |
|
- | |||||
| 34 | 5308010514 | Tray Glass |
|
- | |||||
| 35 | 5303091100 | Screw |
|
- | |||||
| 36 | 5308037912 | Trim |
|
- | |||||
| 37 | 5308010510 | Cap (2) |
|
- | |||||
| 38 | 5303200597 | Cover, Seal (2) |
|
- | |||||
| 39 | 5303207965 | Seal (2) |
|
- | |||||
| 40 | 5303011684 | Probe |
|
- | |||||
| 41 | 08010551 | Plug Oven, White |
|
- | |||||
| 42 | 08010551 | Plug Oven, Red |
|
- | |||||
| 43 | 08010555 | Bushing |
|
- | |||||
| 44 | 5308037677 | Retainer |
|
- | |||||
| 45 | 08010550 | Duct |
|
- | |||||
| 46 | 08010548 | Trim Lh |
|
- | |||||
| 47 | 08010549 | Trim-rh |
|
- | |||||
| 48 | 5308008976 | Seal |
|
- | |||||
| 49 | 5303207949 | Screw |
|
- | |||||
| 50 | 3051260 | Pnl. Side Lh, White |
|
- | |||||
| 52 | 3051263 | Pnl. Side Rh, White |
|
- | |||||
| 53A | 5303013626 | Btn. Liner Top (non-illustrated) |
|
- | |||||
| 53B | 5308037664 | Plug Btn. (non-illustrated) |
|
- | |||||
| 53C | 5303207548 | Nut No. 8au Type (non-illustrated) |
|
- | |||||
| 53D | 5308008961 | Clip, Hinge Mtg Dr. (non-illustrated) |
|
- | |||||
| 53E | 5308010617 | Duct Btm. (non-illustrated) |
|
- | |||||
| 53F | 5308014510 | Spacer, Wrapper (non-illustrated) |
|
- | |||||
| 53G | 5308010617 | Cover (non-illustrated) |
|
- |
