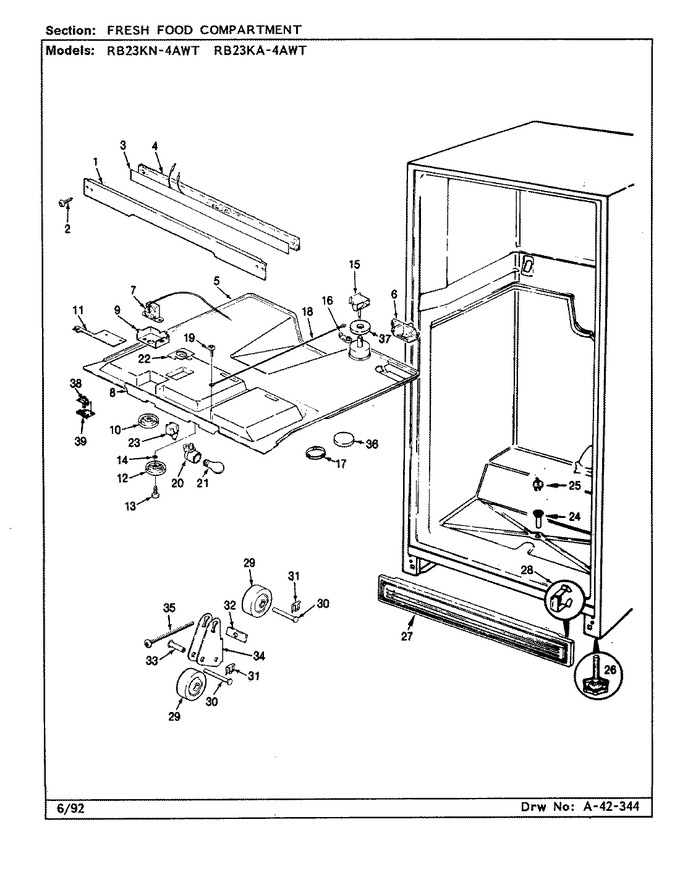

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68434-3-AM | Divider, Mullion (alm) | 00 |
|
- | ||||
| 2 | 65275-54 | Screw | 00 |
|
- | ||||
| 3 | 68829-3 | Heater | 00 |
|
- | ||||
| 3 | 68577-2 | Insulation | 00 |
|
- | ||||
| 4 | 60140-2 | Insulation | 00 |
|
- | ||||
| 4 | 69151-2 | Wire Harness Mullion | 00 |
|
- | ||||
| 5 | 69793-2 | Top, F.f. Compartment | 00 |
|
- | ||||
| 6 | 60120-2 | Deflector | 00 |
|
- | ||||
| 7 | WP68601-6 | Control, Temperature (Replaces: 68601-3) | 00 |
|
Immediately | $ 233.80 | |||
| 7 | 406013-1 | Screw | 00 |
|
- | ||||
| 8 | 60571-59 | Insert, Trim Escutcheon | 00 |
|
- | ||||
| 9 | 405012-1 | Screw | 00 |
|
- | ||||
| 9 | 60083-1 | Cover, Temperature Control | 00 |
|
- | ||||
| 9 | 28013-2 | Rivet, Air Tunnel | 00 |
|
- | ||||
| 10 | 68600-5 | Knob, Temp. Control | 00 |
|
- | ||||
| 11 | WP210720 | Rivet (Replaces: 26397-2) | 00 |
|
$ 12.14 | ||||
| 11 | 60147-1 | Bracket, Control | 00 |
|
- | ||||
| 12 | 68600-6 | Knob, Frz. Control | 00 |
|
- | ||||
| 13 | W11233072 | Screw (Replaces: 405016-103) | 00 |
|
Immediately | $ 12.62 | |||
| 14 | 420092-900 | Washer, Spring | 00 |
|
- | ||||
| 15 | 67558-4 | Orifice Damper Assembly | 00 |
|
- | ||||
| 16 | 67636-1 | Crank, Frz. Control | 00 |
|
- | ||||
| 17 | 67493-1 | Cover, Crank | 00 |
|
- | ||||
| 18 | 67499-4 | Rod | 00 |
|
- | ||||
| 19 | 420005-1 | Washer, Control Rod | 00 |
|
- | ||||
| 19 | WP59002061 | Screw (Replaces: 65275-13) | 00 |
|
$ 6.98 | ||||
| 20 | 60577-1 | Socket, Light | 00 |
|
- | ||||
| 21 | W11679940 | Bulb, Light (Replaces: 68123-1) | 00 |
|
Immediately | $ 10.17 | |||
| 22 | 29675-28 | Ground Wire | 00 |
|
- | ||||
| 22 | WP210720 | Rivet (Replaces: 26397-2) | 00 |
|
$ 12.14 | ||||
| 22 | 60147-2 | Bracket, Light Socket | 00 |
|
- | ||||
| 23 | W11384469 | Switch, Light (Replaces: 66987-1) | 00 |
|
Immediately | $ 33.51 | |||
| 24 | 54531-8 | Grommet | 00 |
|
- | ||||
| 25 | 65039-1 | Cap, Drain Tube | 00 |
|
- | ||||
| 26 | W11117769 | Leg, Leveling (Replaces: 68664-1) | 00 |
|
Immediately | $ 16.61 | |||
| 27 | 68980-3 | Kickplate (blk) | 00 |
|
- | ||||
| 28 | WP489478 | Screw (Replaces: 400017-1) | 00 |
|
$ 6.98 | ||||
| 28 | 60100-1 | Clip, Kickplate | 00 |
|
$ 5.85 | ||||
| 29 | 29834-2 | Wheel | 00 |
|
- | ||||
| 30 | 29835-2 | Pin, Wheel | 00 |
|
- | ||||
| 31 | 60216-1 | Clip | 00 |
|
- | ||||
| 32 | 59101-1 | Tapping Plate, Wheel | 00 |
|
- | ||||
| 33 | 64965-1 | Pin, Wheel | 00 |
|
- | ||||
| 34 | 67530-1 | Bracket, Wheel | 00 |
|
- | ||||
| 35 | 71003131 | Screw (Replaces: 65275-64) | 00 |
|
Immediately | $ 6.07 | |||
| 36 | 69037-1 | Disc, Crank Cover | 00 |
|
- | ||||
| 37 | 68989-1 | Seal, Top Tower | 00 |
|
- | ||||
| 38 | 60585-1 | Switch, Mullion Heater | 00 |
|
- | ||||
| 39 | 60583-1 | Bracket, Switch | 00 |
|
- | ||||
| 39 | 402013-1 | Screw | 00 |
|
- |
