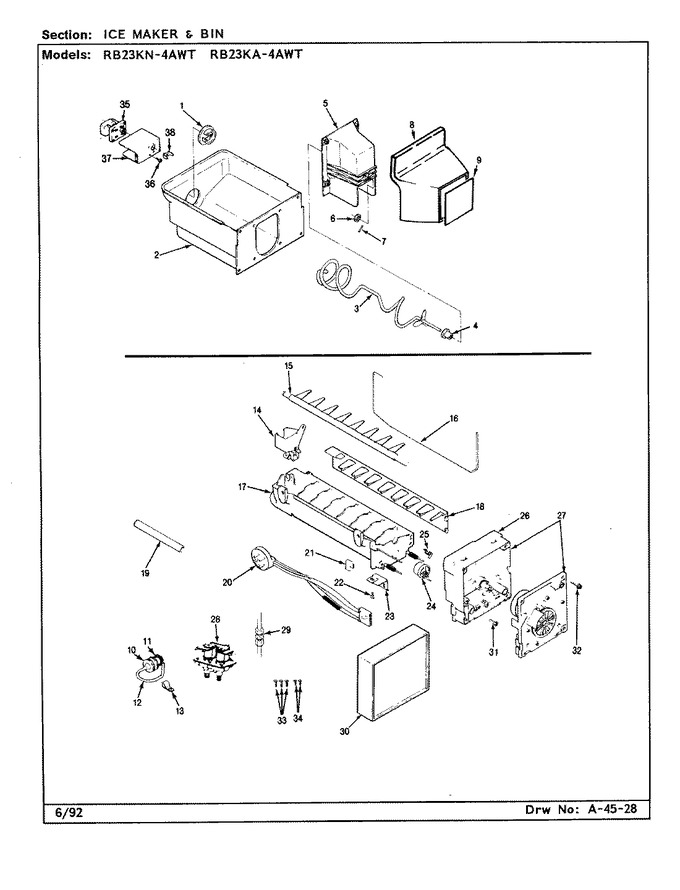

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 63017-1 | Ring, Drive | 00 |
|
- | ||||
| 2 | 67831-1 | Bin | 00 |
|
- | ||||
| 3 | 67833-1 | Auger | 00 |
|
- | ||||
| 4 | 67172-2 | Bearing | 00 |
|
- | ||||
| 5 | 67832-1 | Ice Dam | 00 |
|
- | ||||
| 6 | 67834-2 | Washer, Thrust | 00 |
|
- | ||||
| 7 | 492007-703 | Pin, Cotter | 00 |
|
- | ||||
| 8 | WP1163283 | Screw (Replaces: 405022-103) | 00 |
|
$ 6.47 | ||||
| 8 | 68730-1 | Front, Ice Bin | 00 |
|
- | ||||
| 9 | 68782-5 | Insert, Bin Front | 00 |
|
- | ||||
| 10 | 24685-1 | Nut, Inlet Tubing | 00 |
|
- | ||||
| 11 | 24685-5 | Washer, Inlet Tubing Nut | 00 |
|
- | ||||
| 12 | 60219-1 | Inlet Tubing Assembly | 00 |
|
- | ||||
| 13 | W10833902 | Clamp, Tubing (Replaces: 53516-8) | 00 |
|
$ 9.89 | ||||
| 13 | WP489069 | Screw (Replaces: 65275-50) | 00 |
|
Immediately | $ 7.07 | |||
| 14 | WP628356 | Inlet, Water (Replaces: 95100-1) | 00 |
|
$ 46.07 | ||||
| 15 | WP627843 | Ejector, Ice (Replaces: 95101-1) | 00 |
|
$ 75.24 | ||||
| 16 | 68112-1 | Arm, Sensor | 00 |
|
- | ||||
| 16 | 67556-1 | Sleeve, Sensor Arm | 00 |
|
- | ||||
| 17 | D7824706Q | Mold & Heater Assy. (Replaces: 95098-1) | 00 |
|
Immediately | $ 150.62 | |||
| 18 | WP2182124 | Stripper, Ice (Replaces: 95102-1) | 00 |
|
$ 77.45 | ||||
| 19 | 67666-2 | Tube, Water Entry | 00 |
|
- | ||||
| 20 | 67672-1 | Wire Harness, Ice Maker | 00 |
|
- | ||||
| 21 | WP628379 | Clamp, Wire Harness (Replaces: 68118-1) | 00 |
|
$ 9.51 | ||||
| 22 | WP489128 | Screw, Bracket (Replaces: 95108-1) | 00 |
|
$ 9.79 | ||||
| 23 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) | 00 |
|
$ 83.70 | ||||
| 24 | WP627985 | Thermostat (Replaces: 95092-1) | 00 |
|
Immediately | $ 98.26 | |||
| 24 | 95093-1 | Cement, Alumilastic (4 Oz.) | 00 |
|
$ 49.64 | ||||
| 25 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) | 00 |
|
$ 9.95 | ||||
| 26 | WP2195914 | Support, Module Housing (Replaces: 95103-1) | 00 |
|
$ 94.11 | ||||
| 27 | D7824706Q | Module, Ice Maker (Replaces: 95109-1) | 00 |
|
Immediately | $ 150.62 | |||
| 28 | 67559-1 | Valve | 00 |
|
- | ||||
| 29 | WPW10296793A | Union, Compression (Replaces: 54267-1) | 00 |
|
$ 10.93 | ||||
| 30 | WPW10289690 | Cover Ice Maker (Replaces: 68113-1) | 00 |
|
Immediately | $ 7.56 | |||
| 31 | 95105-1 | Screw | 00 |
|
- | ||||
| 32 | WP681249 | Screw (Replaces: 95106-1) | 00 |
|
Immediately | $ 7.07 | |||
| 33 | W11772394 | Screw (Replaces: 400021-1) | 00 |
|
Immediately | $ 10.94 | |||
| 34 | 401018-1 | Screw | 00 |
|
- | ||||
| 35 | 12001773 | Motor, Auger (Replaces: 65186-1) | 00 |
|
$ 312.61 | ||||
| 36 | 67701-1 | Wire Harness | 00 |
|
- | ||||
| 36 | W11233072 | Screw (Replaces: 400026-12) | 00 |
|
Immediately | $ 12.62 | |||
| 37 | 68578-1 | Bracket | 00 |
|
- | ||||
| 37 | WP488234 | Screw (Replaces: 406026-103) | 00 |
|
$ 6.07 | ||||
| 38 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) | 00 |
|
Immediately | $ 62.02 |
