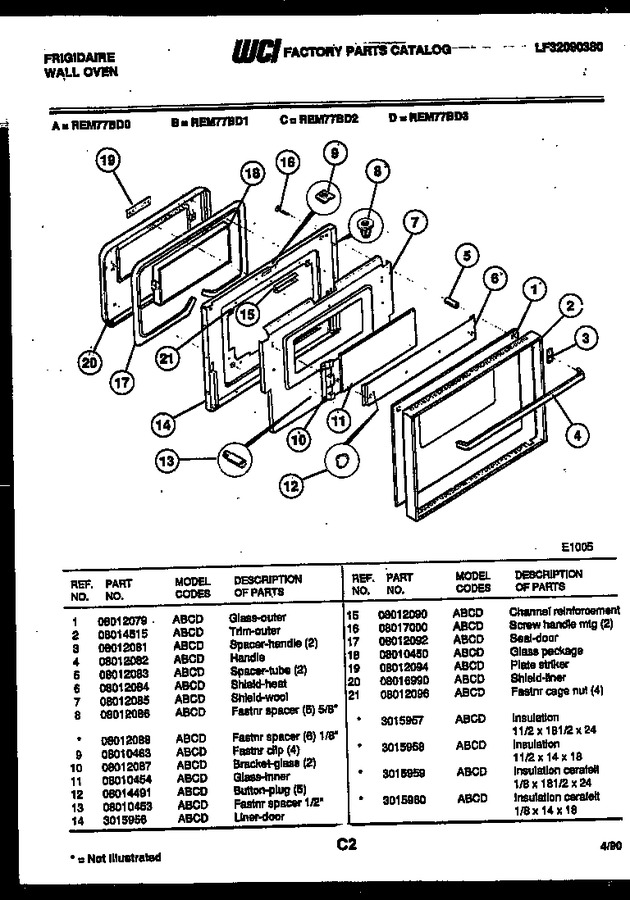

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08012079		Glass-outer		Appelez-nous	-
2	08014515		Trim-outer		Appelez-nous	-
3	08012081		Spacer-handle (2)		Appelez-nous	-
4	08012082		Handle		Appelez-nous	-
5	08012083		Spacer-tube (2)		Appelez-nous	-
6	08012084		Shield-heat		Appelez-nous	-
7	08012085		Shield-wool		Appelez-nous	-
8	08012086		Fastnr Spacer (5) 5/8``		Appelez-nous	-
9	08010463		Fastener-clip		Appelez-nous	-
10	08012087		Bracket-glass (2)		Appelez-nous	-
11	08010454		Glass-inner		Appelez-nous	-
12	08014491		Button-plug (5)		Appelez-nous	-
13	08010453		Fastnr Spacer 1/2``		Appelez-nous	-
14	3015956		Liner-door		Appelez-nous	-
15	08012090		Channel Reinforcement		Appelez-nous	-
16	08017000		Screw Handle Mtg (2)		Appelez-nous	-
17	08012092		Seal-door		Appelez-nous	-
18	08010450		Glass Package		Appelez-nous	-
19	08012094		Plate Striker		Appelez-nous	-
20	08016990		Shield-liner		Appelez-nous	-
21	08012096		Fastnr Cage Nut (4)		Appelez-nous	-
*21788	3015958		Insulation 1 1/2 X 14 X 18		Appelez-nous	-
*21788	3015957		Insulation 1 1/2 X 18 1/2 X 24		Appelez-nous	-
*21789	3015959		Insulation Cerafelt 1/8 X 18 1/2 X 24		Appelez-nous	-
*21789	3015960		Insulation Cerafelt 1/8 X 14 X 18		Appelez-nous	-
8A	08012088		Fastnr Spacer (6) 1/8`` (non-illustrated)		Appelez-nous	-
