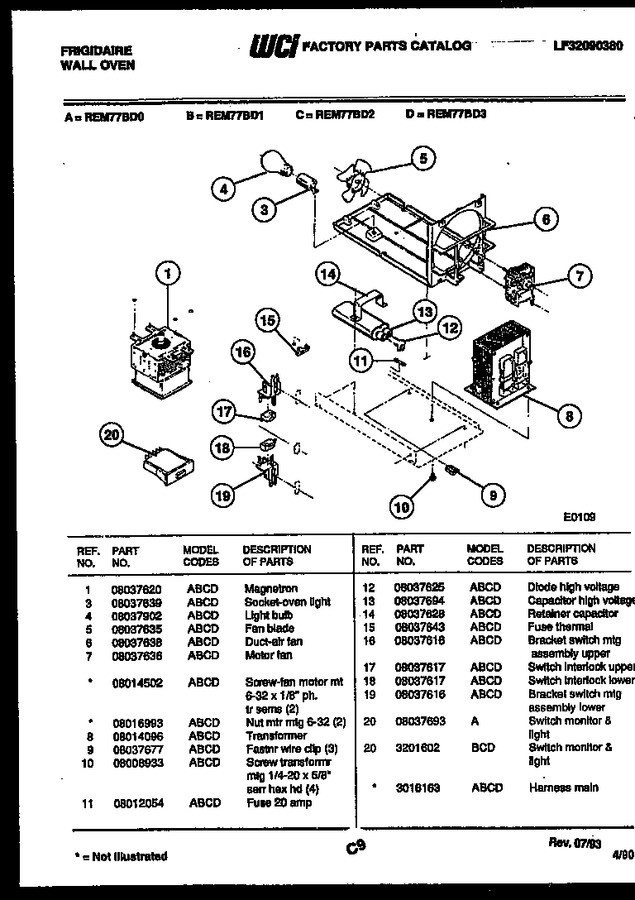

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08037620		Magnetron		Appelez-nous	-
3	08037639		Socket-oven Light		Appelez-nous	-
4	08037902		Light Bulb		Appelez-nous	-
5	08037635		Fan Blade		Appelez-nous	-
6	08037638		Duct - Air (fan)		Appelez-nous	-
7	08037636		Motor - Fan		Appelez-nous	-
8	08014096		Transformer		Appelez-nous	-
9	08037677		Fastnr Wire Clip (3)		Appelez-nous	-
10	08008933		Screw Transformr Mtg 1/4-20 X 5/8`` Serr Hex Hd (4) (non-		Appelez-nous	-
11	08012054		Fuse 20 Amp		Appelez-nous	-
12	08037625		Diode High Voltage		Appelez-nous	-
13	08037694		Capacitor High Voltage		Appelez-nous	-
14	08037628		Retainer Capacitor		Appelez-nous	-
15	08037643		Fuse - Thermal		Appelez-nous	-
16	08037616		Bracket Switch Mtg Assembly Upper		Appelez-nous	-
17	08037617		Switch Interlock Upper		Appelez-nous	-
18	08037617		Switch Interlock Lower		Appelez-nous	-
19	08037616		Bracket Switch Mtg Assembly Lower		Appelez-nous	-
20	3201602		Switch Monitor & Light		Appelez-nous	-
*21799	3016163		Harness Main		Appelez-nous	-
7A	08014502		Screw-fan Motor Mt 6-32 X 1/8`` Ph. Tr Sems (2) (non-illustrated)		Appelez-nous	-
7B	08016993		Nut Mtr Mtg 6-32 (2) (non-illustrated)		Appelez-nous	-
