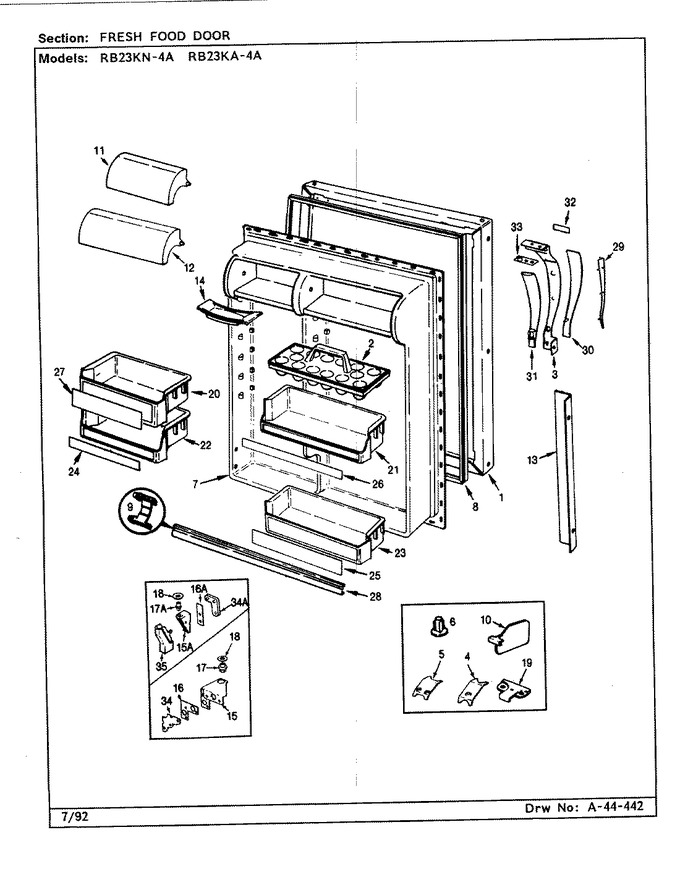

RB23KN-4A (BOM: BG94C) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	68475-1-WW	Panel, F.f. Door (wht)	Appelez-nous	-
1	RA95056-1	Door Insulation Kit	Appelez-nous	-
2	60066-1	Tray, Egg	Appelez-nous	-
3	65275-57	Screw	Appelez-nous	-
3	66255-4	Door Handle	Appelez-nous	-
4	56209-3	Clip, Stop Screw	Appelez-nous	-
5	60123-2	Clip, Stop Screw	Appelez-nous	-
6	55782-10	Plug Button, Hdle & Door Stop	Appelez-nous	-
7	65275-5	Screw	Appelez-nous	-
7	68721-1	Inner Panel	Appelez-nous	-
8	66199-8	Gasket, Door	Appelez-nous	-
9	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)			$ 9.39
10	66645-6	Organizer Package	Appelez-nous	-
11	66184-364	Door, Dairy	Appelez-nous	-
12	66184-363	Door, Dairy (large)	Appelez-nous	-
13	60453-19	Trim Extension	Appelez-nous	-
14	29936-2	Tray, Butter	Appelez-nous	-
15	68975-2	Hinge, Lower	Appelez-nous	-
15	65275-51	Screw, Lower Hinge	Appelez-nous	-
16	69031-3	Shim	Appelez-nous	-
17	68977-1	Pin, Hinge	Appelez-nous	-
18	67483-3	Washer, Lower Hinge (Replaces: 67483-2)		Immediately	$ 45.86
19	9986-108	Screw	Appelez-nous	-
19	68987-1	Stop, Door	Appelez-nous	-
20	60037-35	Door Shelf	Appelez-nous	-
21	60037-40	Door Shelf	Appelez-nous	-
22	60037-37	Shelf, Pick-off	Appelez-nous	-
23	60037-39	Door Shelf	Appelez-nous	-
24	68130-52	Insert	Appelez-nous	-
25	68130-56	Insert	Appelez-nous	-
26	68130-55	Insert	Appelez-nous	-
27	68130-65	Insert	Appelez-nous	-
28	WP61003045	Trim, Shelf (Replaces: 68375-21)			$ 129.55
29	68017-2	Insert, Vinyl Clad	Appelez-nous	-
30	68016-4	Insert	Appelez-nous	-
31	60445-3	Insert, Handle (back)	Appelez-nous	-
32	60603-19	Insert, Nameplate	Appelez-nous	-
33	65275-53	Screw	Appelez-nous	-
33	68776-1	Shim Handle----na	Appelez-nous	-
34	67874-1	Tapping Plate, Lower Hinge	Appelez-nous	-
34	65275-59	Screw	Appelez-nous	-
35	68978-1	Cover, Lower Hinge (blk)	Appelez-nous	-
