SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit

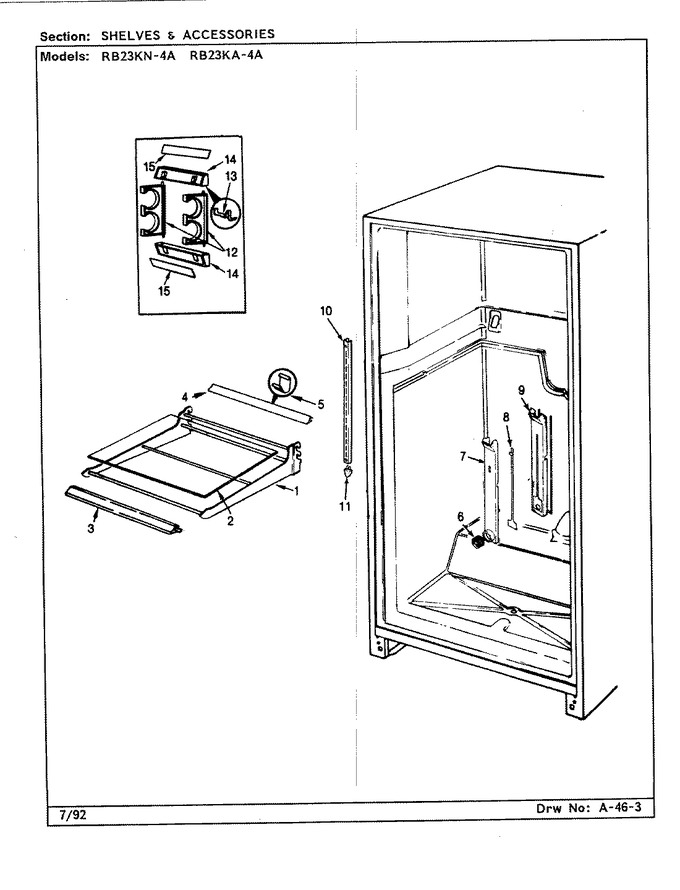

06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60570-41		Frame, Shelf		Appelez-nous	-
2	68139-14		Glass Cantilever Shelf		Appelez-nous	-
3	68136-26		Trim, Cantilever Shelf		Appelez-nous	-
4	65276-36		Trim, Rear-1/2 Shelf		Appelez-nous	-
5	66333-2		Clip		Appelez-nous	-
6	68282-1		Bellows, Air Tunnel		Appelez-nous	-
7	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
7	68285-6		Cover, Air Tunnel		Appelez-nous	-
8	68290-3		Damper, Air Tunnel		Appelez-nous	-
9	68418-1		Seal, Closed Cell		Appelez-nous	-
9	68289-2		Insulation, Air Tunnel		Appelez-nous	-
10	68238-2		Rail, Cantilever Shelf		Appelez-nous	-
10	400037-28		Screw		Appelez-nous	-
10	68238-3		Rail, Cantilever Shelf		Appelez-nous	-
10	68238-1		Rail, Cantilever Shelf		Appelez-nous	-
11	60340-1		End Cap, Center Rail		Appelez-nous	-
12	56519-4		Rack, Wine		Appelez-nous	-
13	58057-1		Spring, Wine Rack		Appelez-nous	-
14	65689-1		Support, Wine Rack		Appelez-nous	-
14	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
15	68821-9		Insert		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
