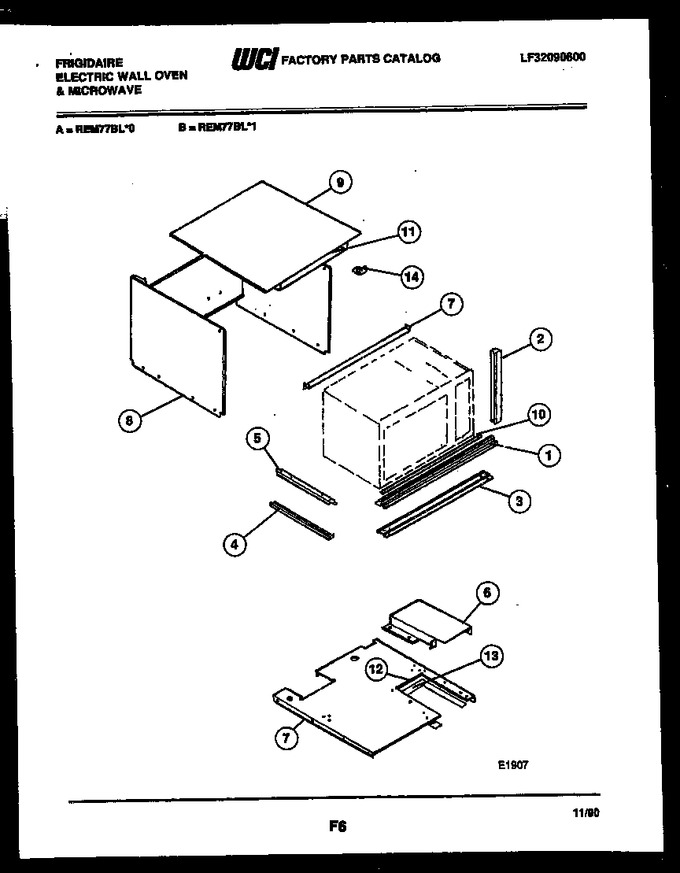

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209151 | Trim-center Vent |
|
- | |||||
| 2 | 5303209152 | Trim-side (2) |
|
- | |||||
| 3 | 3019065 | Support-bottom (2) |
|
- | |||||
| 4 | 3019060 | Channel-slide (2) |
|
- | |||||
| 5 | 3019079 | Channel-slide (2) |
|
- | |||||
| 6 | 3019062 | Duct-air |
|
- | |||||
| 7 | 3019068 | Wrapper-center Top |
|
- | |||||
| 8 | 3019067 | Wrapper-outer |
|
- | |||||
| 9 | 5303206777 | Wrapper-top |
|
- | |||||
| 10 | 5303209150 | Trim-bottom |
|
- | |||||
| 11 | 5303206787 | Vent-air |
|
- | |||||
| 12 | 3019058 | Tape-foam 7.5`` |
|
- | |||||
| 13 | 3019057 | Tape-foam 13`` |
|
- | |||||
| 14 | 5303206786 | Bracket-conduit |
|
- | |||||
| 7A | 08012196 | Clip-side Trim (non-illustrated) |
|
- |
