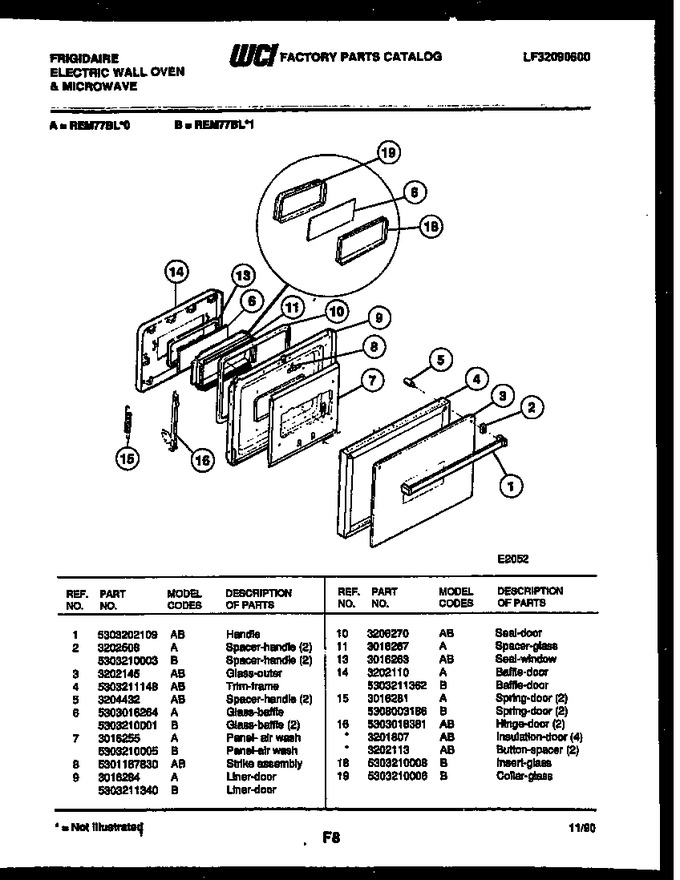

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303202109 | Handle |
|
- | |||||
| 2 | 3202508 | Spacer - Handle (2) |
|
- | |||||
| 3 | 3202145 | Glass-outer |
|
- | |||||
| 4 | 5303211148 | Trim - Frame |
|
- | |||||
| 5 | 3204432 | Spacer-handle (2) |
|
- | |||||
| 6 | 5303016264 | Glass - Baffle |
|
- | |||||
| 7 | 3016255 | Panel - Air Wash |
|
- | |||||
| 8 | 5301167830 | Strike, Assembly |
|
- | |||||
| 9 | 3016284 | Liner - Door |
|
- | |||||
| 10 | 3206270 | Seal - Door |
|
- | |||||
| 11 | 3016267 | Spacer-glass |
|
- | |||||
| 13 | 3016263 | Seal - Window |
|
$ 66.15 | |||||
| 14 | 3202110 | Baffle - Door |
|
- | |||||
| 15 | 3016281 | Spring-door (2) |
|
- | |||||
| 16 | 5303018381 | Hinge - Door (2) |
|
$ 145.85 | |||||
| 16A | 3201807 | Insulation-door (4) (non-illustrated) |
|
- | |||||
| 16B | 3202113 | Button-spacer (2) (non-illustrated) |
|
- |
