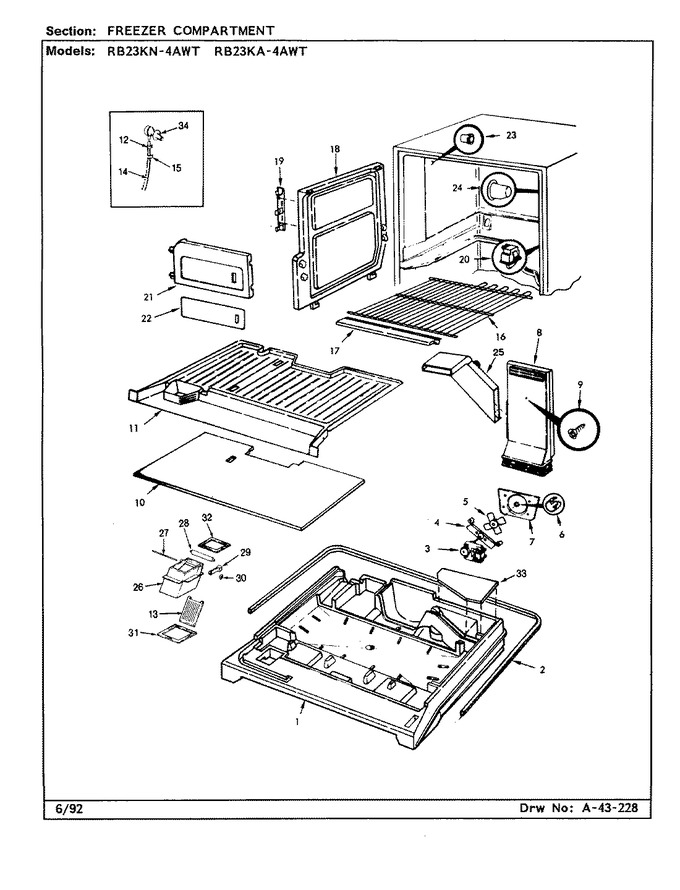

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69126-2 | Tray, Styrofoam Mullion |
|
- | |||||
| 2 | 67730-1 | Seal, Front Corner |
|
- | |||||
| 2 | 68866-4 | Foam Seal 84`` |
|
- | |||||
| 3 | WP61004888 | Motor, Evaporator Fan (Replaces: 54482-10) |
|
Immediately | $ 104.99 | ||||
| 3 | 406062-1 | Screw |
|
- | |||||
| 4 | 400015-12 | Screw |
|
- | |||||
| 4 | 64856-1 | Bracket, Fan Motor |
|
- | |||||
| 5 | 64359-1 | Blade, Evaporator Fan |
|
- | |||||
| 6 | 420092-900 | Washer, Spring |
|
- | |||||
| 7 | 60608-2 | Orifice, Fan Blade |
|
- | |||||
| 8 | 66325-34 | Seal, Air Tunnel----na |
|
- | |||||
| 8 | 68592-3 | Tunnel, Air |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 400015-31) |
|
Immediately | $ 12.62 | ||||
| 10 | 66403-5 | Cover, Evaporator |
|
- | |||||
| 11 | 68555-1 | Bottom, Frz. |
|
- | |||||
| 12 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) |
|
$ 9.95 | |||||
| 13 | 67647-1 | Door, Ice Tunnel |
|
- | |||||
| 14 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-7) |
|
$ 11.19 | |||||
| 15 | W10833902 | Clamp, Tubing (Replaces: 53516-8) |
|
$ 9.89 | |||||
| 15 | WP33002917 | Screw (Replaces: 65275-1) |
|
Immediately | $ 6.90 | ||||
| 16 | 60514-3 | Shelf, Frz. |
|
- | |||||
| 17 | 68136-51 | Trim, Frz. Shelf |
|
- | |||||
| 18 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 18 | 65622-2 | Divider |
|
- | |||||
| 19 | 66146-1 | Latch |
|
- | |||||
| 19 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 20 | 65512-1 | Spacer |
|
- | |||||
| 20 | 68058-1 | Switch, Interlock |
|
- | |||||
| 21 | 402015-103 | Screw, Ice Door |
|
- | |||||
| 21 | 65627-1 | Im Encl Front |
|
- | |||||
| 22 | 68835-3 | Trim, Ice Disp. Front |
|
- | |||||
| 23 | 60313-1 | Cup, Shelf |
|
- | |||||
| 24 | 65570-1 | Freezer Shelf Cup |
|
- | |||||
| 25 | 67061-3 | Duct, Air |
|
- | |||||
| 26 | 68819-1 | Tunnel, Ice |
|
- | |||||
| 27 | 67289-2 | Shaft Ice Door |
|
- | |||||
| 28 | 67174-1 | Weight Damper Door |
|
- | |||||
| 28 | 67282-1 | E Ring |
|
- | |||||
| 29 | 67184-1 | Arm Damper Door |
|
- | |||||
| 30 | 431015-511 | Nut, Push On |
|
- | |||||
| 31 | 66325-27 | Seal, Ice Tunnel (lower) |
|
- | |||||
| 32 | 66325-12 | Seal, Foam Try |
|
- | |||||
| 33 | 66480-6 | Cover, Plenum |
|
- | |||||
| 34 | 68307-1 | Grommet, Water Entry |
|
- |
