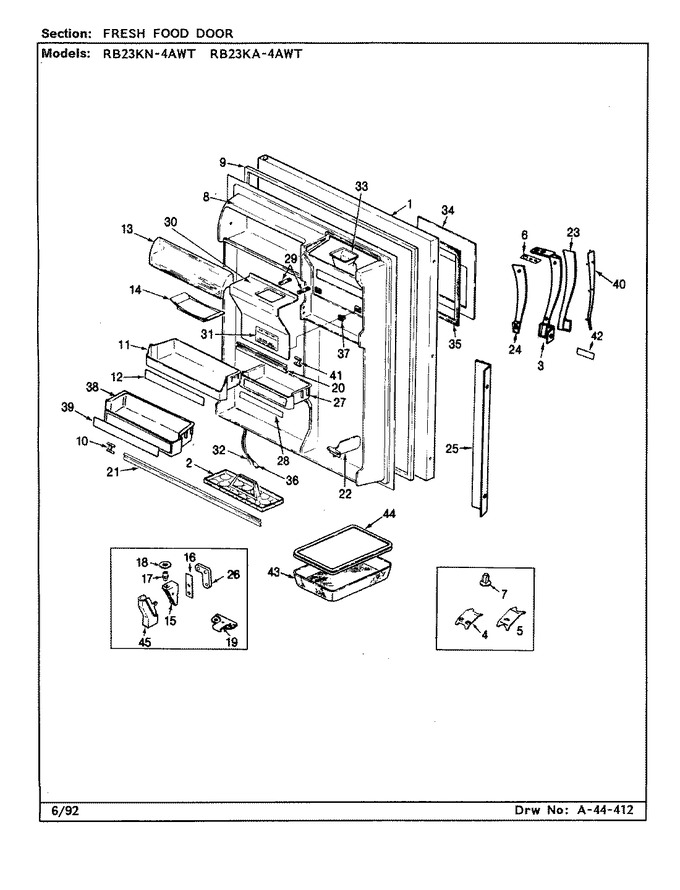

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68477-1-WW | Panel, F.f. Door (wht) | 00 |
|
- | ||||
| 1 | RA95056-1 | Door Insulation Kit | 00 |
|
- | ||||
| 2 | 60066-1 | Tray, Egg | 00 |
|
- | ||||
| 3 | 66255-4 | Door Handle | 00 |
|
- | ||||
| 4 | 65275-57 | Screw | 00 |
|
- | ||||
| 4 | 60123-2 | Clip, Stop Screw | 00 |
|
- | ||||
| 5 | 56209-3 | Clip, Stop Screw | 00 |
|
- | ||||
| 6 | 68776-1 | Shim Handle----na | 00 |
|
- | ||||
| 7 | 55782-10 | Plug Button, Hdle & Door Stop | 00 |
|
- | ||||
| 8 | 68677-6 | Liner, F.f. Door | 00 |
|
- | ||||
| 8 | 65275-5 | Screw | 00 |
|
- | ||||
| 9 | 66199-8 | Gasket, Door | 00 |
|
- | ||||
| 10 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 00 |
|
$ 9.39 | ||||
| 11 | 60037-40 | Door Shelf | 00 |
|
- | ||||
| 12 | 68130-57 | Insert, Pickoff | 00 |
|
- | ||||
| 13 | 66184-363 | Door, Dairy (large) | 00 |
|
- | ||||
| 14 | 29936-2 | Tray, Butter | 00 |
|
- | ||||
| 15 | 65275-51 | Screw, Lower Hinge | 00 |
|
- | ||||
| 15 | 68975-1 | Hinge, Lower | 00 |
|
- | ||||
| 16 | 69031-3 | Shim | 00 |
|
- | ||||
| 17 | 68976-1 | Pin, Lower Hinge | 00 |
|
- | ||||
| 18 | 67483-3 | Washer, Door Spacer | 00 |
|
Immediately | $ 45.86 | |||
| 19 | 68987-2 | Stop, Door | 00 |
|
- | ||||
| 19 | 65275-48 | Screw | 00 |
|
- | ||||
| 20 | 68376-15 | Trim, Door Shelf | 00 |
|
- | ||||
| 21 | WP61003045 | Trim, Shelf (Replaces: 68375-21) | 00 |
|
$ 129.55 | ||||
| 22 | 66645-6 | Organizer Package | 00 |
|
- | ||||
| 23 | 68016-4 | Insert | 00 |
|
- | ||||
| 24 | 60445-3 | Insert, Handle (back) | 00 |
|
- | ||||
| 24 | 65275-53 | Screw | 00 |
|
- | ||||
| 25 | 60453-19 | Trim Extension | 00 |
|
- | ||||
| 26 | 67874-1 | Tapping Plate, Lower Hinge | 00 |
|
- | ||||
| 26 | 65275-59 | Screw | 00 |
|
- | ||||
| 27 | 60037-35 | Door Shelf | 00 |
|
- | ||||
| 28 | 68130-52 | Insert | 00 |
|
- | ||||
| 29 | 52077-26 | Seal | 00 |
|
- | ||||
| 30 | 68700-2 | Access Panel | 00 |
|
- | ||||
| 30 | 68781-1 | Insulation, Fountain Back | 00 |
|
- | ||||
| 30 | 68779-1 | Insulation, Fountain Perimeter | 00 |
|
- | ||||
| 31 | 68785-8 | Insert | 00 |
|
- | ||||
| 32 | WPW10426709 | Tubing (Replaces: 67187-11) | 00 |
|
$ 126.83 | ||||
| 33 | 68571-1 | Chute, Ice | 00 |
|
- | ||||
| 34 | 68594-2 | Escutcheon | 00 |
|
- | ||||
| 35 | 95121-1 | Tape, Escutcheon | 00 |
|
- | ||||
| 36 | 69152-1 | Wire Harness Door To Main | 00 |
|
- | ||||
| 36 | 68907-1 | Wire Harness | 00 |
|
- | ||||
| 37 | 65184-3 | Latch | 00 |
|
- | ||||
| 38 | 60037-39 | Door Shelf | 00 |
|
- | ||||
| 39 | 68130-56 | Insert | 00 |
|
- | ||||
| 40 | 68017-2 | Insert, Vinyl Clad | 00 |
|
- | ||||
| 41 | 65246-1 | Retainer | 00 |
|
$ 5.04 | ||||
| 42 | 60603-20 | Insert Nameplate | 00 |
|
- | ||||
| 42 | 60603-19 | Insert, Nameplate | 00 |
|
- | ||||
| 43 | 68426-1 | Dish, Microwave | 00 |
|
- | ||||
| 44 | 68534-1 | Insert, M/wave Dish | 00 |
|
- | ||||
| 44 | 68427-1 | Cover, Micro Dish | 00 |
|
- | ||||
| 45 | 68978-1 | Cover, Lower Hinge (blk) | 00 |
|
- | ||||
| 45 | 65275-47 | Screw, Hinge Cover (black) | 00 |
|
- |
