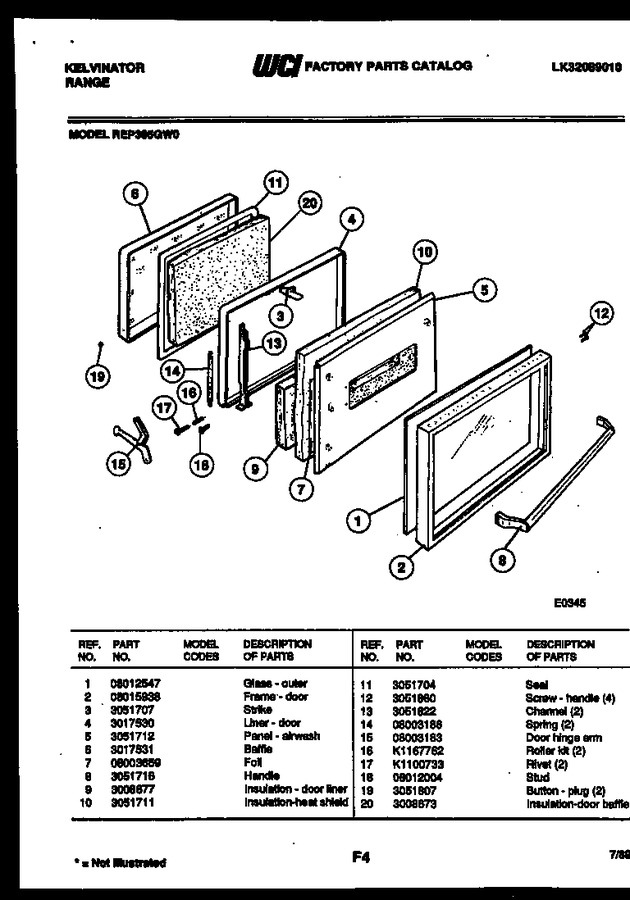

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08012547		Glass - Outer		Appelez-nous	-
2	08015938		Frame - Door		Appelez-nous	-
3	3051707		Strike		Appelez-nous	-
4	3017530		Liner, Door		Appelez-nous	-
5	3051712		Panel, Airwash		Appelez-nous	-
6	3017531		Baffle		Appelez-nous	-
7	08003659		Foil - Aluminum		Appelez-nous	-
8	3051716		Handle		Appelez-nous	-
9	3008677		Insulation - Door Liner		Appelez-nous	-
10	3051711		Insulation-heat Shield		Appelez-nous	-
11	3051704		Seal		Appelez-nous	-
12	3051860		Screw Handle (4)		Appelez-nous	-
13	3051822		Channel (2)		Appelez-nous	-
14	08003186		Spring (2)		Appelez-nous	-
15	08003183		Door-hinge Arm		Appelez-nous	-
16	K1167762		Roller Kit (2)		Appelez-nous	-
17	K1100733		Rivet (2)		Appelez-nous	-
18	08012004		Stud		Appelez-nous	-
19	3051807		Button, Plug (2)		Appelez-nous	-
20	3008673		Insulation-door Baffle		Appelez-nous	-
