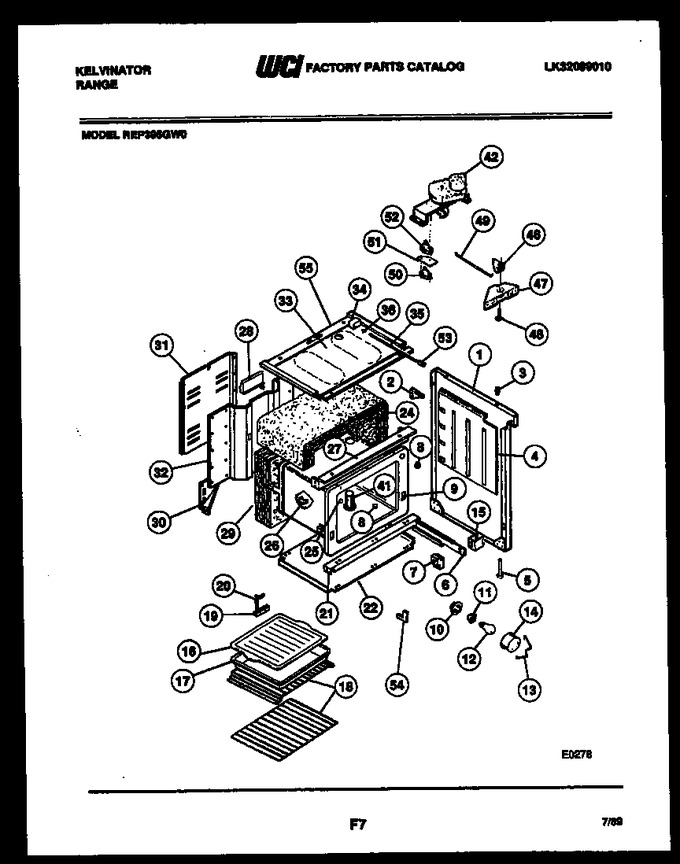

02 - Backguard Parts
03 - Door Parts
04 - Cooktop Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051719 | Side Pnl-rh-almd |
|
- | |||||
| 1 | 08012535 | Side Pnl, Rh (wheat) |
|
- | |||||
| 2 | 3051657 | Gusset-backguard (2) |
|
- | |||||
| 3 | 3051660 | Bumper-cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insulation (2) |
|
- | |||||
| 5 | 3205294 | Leg, Leveller (4) |
|
- | |||||
| 6 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 7 | 3051654 | Guide - Drwr Front (2) |
|
- | |||||
| 8 | 3051784 | Plug-button-oven 3/4`` (2) |
|
- | |||||
| 9 | 3204603 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 08011085 | Receptacle - Light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 3051515 | Retainer, Lens |
|
- | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 15 | 3051653 | Spacer, Drwr Rail (2) |
|
- | |||||
| 16 | 3205234 | Grille, Broiler |
|
- | |||||
| 17 | 3205232 | Pan, Broiler |
|
- | |||||
| 18 | 3131973 | Rack - Oven Regular |
|
- | |||||
| 19 | 3051098 | Terminal-block |
|
- | |||||
| 20 | 3051696 | Strap-ground |
|
- | |||||
| 21 | 3200927 | Channel - Oven Support Lower |
|
- | |||||
| 22 | 3203574 | Panel - Bottom |
|
- | |||||
| 24 | 3051630 | Insulation Oven Wrap |
|
- | |||||
| 25 | 3051796 | Plug Button - Thermo Bulb Hole |
|
- | |||||
| 26 | 3051552 | Brkt, Thermobulb |
|
- | |||||
| 27 | K1325636 | Channel, Oven Support, Upper |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 3051630 | Insulation-oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 3051856 | Cover - Wire |
|
- | |||||
| 32 | 3017535 | Back - Range |
|
- | |||||
| 33 | 08012542 | Panel - Subtop |
|
- | |||||
| 34 | 3051644 | Switch-door |
|
- | |||||
| 35 | 0807445 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 41 | 08012574 | Vent-tube |
|
- | |||||
| 42 | 08015743 | Latch - Motor |
|
- | |||||
| 46 | 3202387 | Latch, Door |
|
- | |||||
| 47 | 3019074 | Housing-door Latch |
|
- | |||||
| 48 | 08012004 | Axle |
|
- | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 3051740 | Switch, Lower |
|
- | |||||
| 51 | 3051861 | Insulator |
|
- | |||||
| 52 | K1167190 | Switch-upper |
|
- | |||||
| 53 | 3011924 | Cover - Rod End |
|
- | |||||
| 54 | 3051810 | Retainer-door (2) |
|
- | |||||
| 55 | 3017633 | Shield-wire |
|
- | |||||
| *98744 | 3934063 | Anti-tip Kit |
|
- | |||||
| 18A | 08014219 | Rack-oven, Offset |
|
- | |||||
| 1A | 3051484 | Side Pnl-lh-almd |
|
- | |||||
| 1A | K5024610 | Side Pnl - Lh Wheat |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 33A | 3051785 | Washer-padded (3) (non-illustrated) |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
