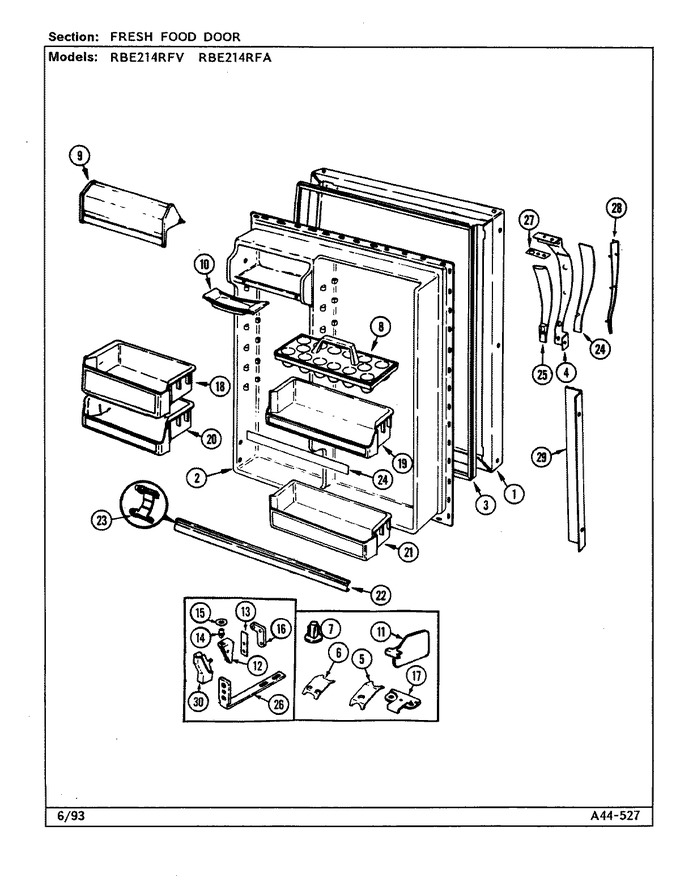

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	69456-1		Liner		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	70025-6		Gasket, F.f. Door (wht)				$ 155.30
4	69300-2		Handle, Door		Appelez-nous	-
4	65275-57		Screw		Appelez-nous	-
5	56209-3		Clip, Stop Screw		Appelez-nous	-
6	60123-2		Clip, Stop Screw		Appelez-nous	-
7	55782-6		Plug Button (almond)		Appelez-nous	-
8	60066-1		Tray, Egg		Appelez-nous	-
9	66184-365		Door, Dairy		Appelez-nous	-
10	29936-2		Tray, Butter		Appelez-nous	-
11	69759-2		Organizer		Appelez-nous	-
12	65275-51		Screw, Lower Hinge		Appelez-nous	-
12	69516-2		Hinge, Lower (blk)		Appelez-nous	-
13	69510-1		Shim, Lower Hinge		Appelez-nous	-
14	69845-1		Pin, Lower Hinge				$ 44.55
15	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
15	65275-59		Screw		Appelez-nous	-
16	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
17	65275-48		Screw		Appelez-nous	-
17	69256-2		Stop, Door		Appelez-nous	-
18	69872-7		Shelf, Pick-off		Appelez-nous	-
19	69872-8		Shelf, Pick-off		Appelez-nous	-
20	69872-9		Shelf, Pick-off		Appelez-nous	-
21	69872-21		Shelf, Pick-off		Appelez-nous	-
21	69794-1		Retainer, Bottle		Appelez-nous	-
22	WP61003045		Shelf Trim   (Replaces: 68832-21)				$ 129.55
23	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
24	68036-4		Insert (alm)		Appelez-nous	-
25	60580-6		Insert		Appelez-nous	-
26	69511-1		Tapping Plate, Lower Hinge		Appelez-nous	-
27	68776-1		Shim Handle----na		Appelez-nous	-
27	65275-53		Screw		Appelez-nous	-
28	68048-5		Insert, Vinyl		Appelez-nous	-
29	60453-32		Trim, F.f. Door (alm)		Appelez-nous	-
30	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
