Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 68285-6 Cover, Air Tunnel Appelez-nous -
1 68418-1 Seal, Closed Cell Appelez-nous -
2 68289-2 Insulation, Air Tunnel Appelez-nous -
3 68290-3 Damper, Air Tunnel Appelez-nous -
4 68282-1 Bellows, Air Tunnel Appelez-nous -
5 W11233072 Screw   (Replaces: 400015-31) In-Stock Immediately $ 12.62

6 60570-43 Frame, Shelf----na Appelez-nous -
7 68139-13 Glass, Split Shelf Appelez-nous -
8 60524-6 Trim, Meat Shelf (front) Appelez-nous -
9 65276-4 Trim, Meat Shelf (rear) Appelez-nous -
10 66333-1 Clip, Shelf Trim Appelez-nous -
11 68238-1 Rail, Cantilever Shelf Appelez-nous -
11 68238-2 Rail, Cantilever Shelf Appelez-nous -
11 68238-3 Rail, Cantilever Shelf Appelez-nous -
12 400037-28 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

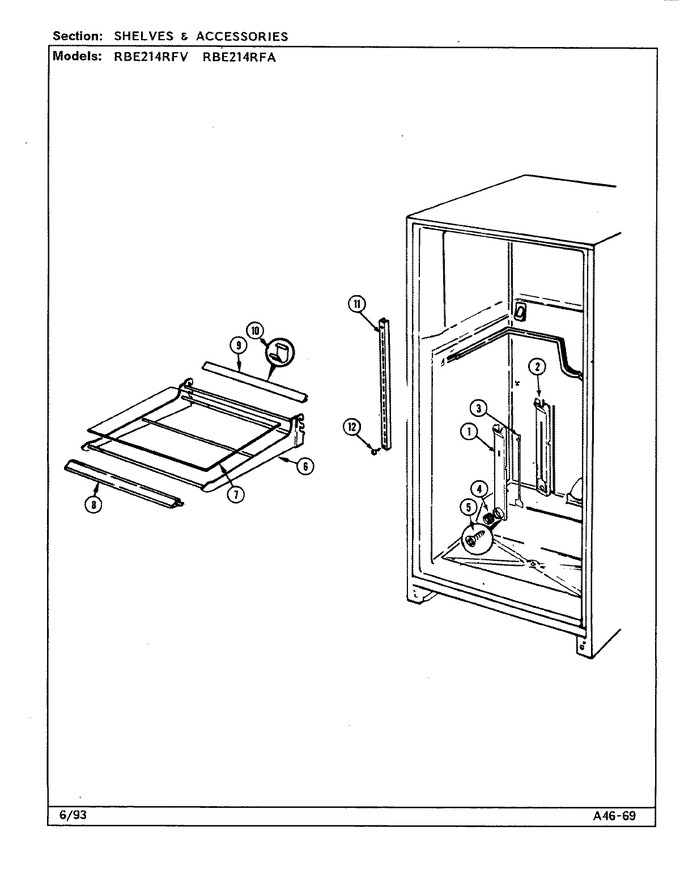

Diagram for RBE214RFA (BOM: DD54A)
