| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

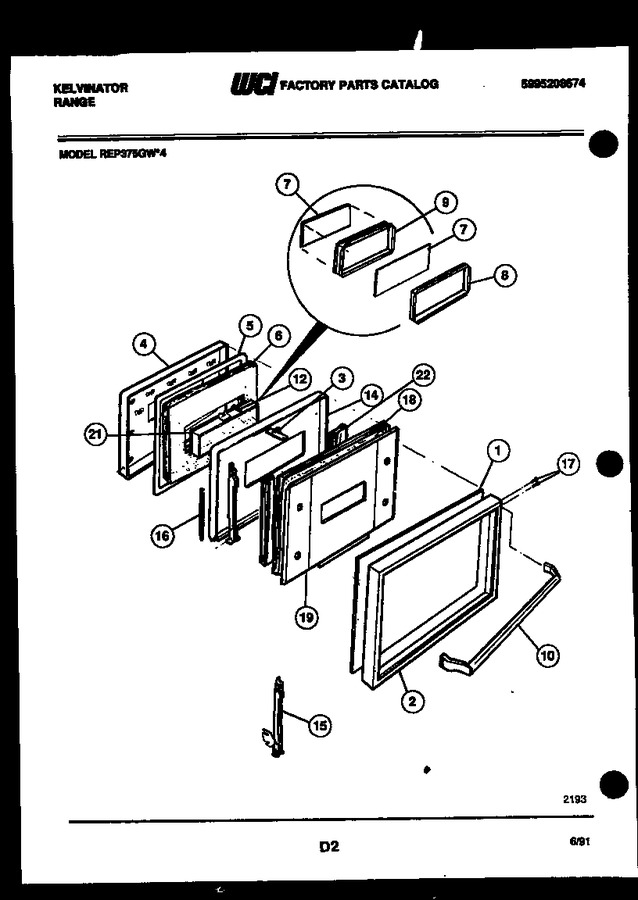

| 1 | 5308012546 | Glass, Outer |
|
- | |||||
| 2 | 3206077 | Frame, Door |
|
- | |||||
| 3 | 5301167830 | Strike-door |
|
- | |||||
| 4 | 5303212553 | Baffle-oven Door |
|
- | |||||
| 5 | 3206078 | Gasket, Oven Door |
|
- | |||||
| 6 | 5303269528 | Insulation-baffle |
|
- | |||||
| 7 | 5303209512 | Glass Heat Barrier (2) |
|
$ 150.41 | |||||
| 8 | 5303269564 | Collar-glass Weldment |
|
- | |||||
| 9 | 5303269679 | Spacer-glass |
|
- | |||||
| 10 | 5303207187 | Handle |
|
- | |||||
| 12 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| 14 | 3017530 | Door Liner |
|
- | |||||
| 15 | 5303207589 | Door Hinge Assy (2) |
|
- | |||||
| 16 | 5308003186 | Spring - Door (2) |
|
- | |||||
| 17 | 5303051860 | Screw, Handle (4) |
|
- | |||||
| 18 | 5303269529 | Insulation-airwash |
|
- | |||||
| 19 | 5303212549 | Panel-airwash |
|
- | |||||
| 21 | 5303269535 | Gasket-glass |
|
- | |||||
| 22 | 5303269530 | Insulation-airwash |
|
- |
