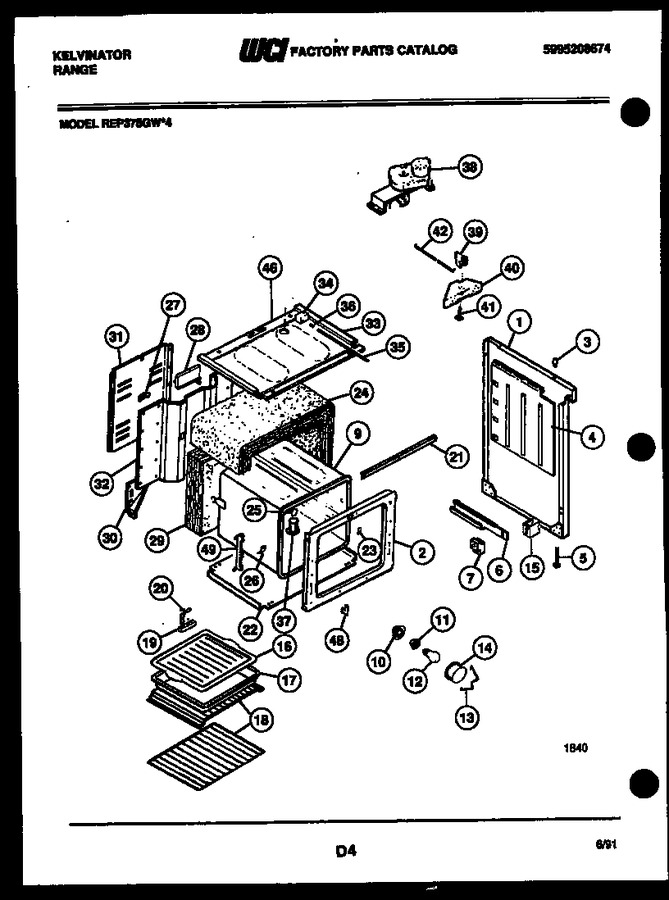

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Broiler Parts
05 - Door Parts
06 - Oven Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012528 | Side Panel, Lh White |
|
- | |||||
| 1 | 5308012527 | Side Panel, Rh White |
|
- | |||||
| 2 | 5303207390 | Front, Oven |
|
- | |||||
| 3 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insulation (2) |
|
- | |||||
| 5 | 5303205540 | Leg - Leveller (4) |
|
- | |||||
| 6 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 6 | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 7 | 3051654 | Guide, Drawer Front (2) |
|
- | |||||
| 9 | 3206079 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 316116400 | Receptacle-light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 12 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 13 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 15 | 3051653 | Spacer, Drawer Rail (2) |
|
- | |||||
| 16 | 3205234 | Grille, Broiler |
|
- | |||||
| 17 | 3205539 | Pan, Broiler |
|
- | |||||
| 18 | 08014219 | Rack-oven, Offset |
|
- | |||||
| 18 | 5303131973 | Rack, Oven Regular |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 5301145190 | Strap, Ground |
|
- | |||||
| 21 | 5303207391 | Support-subtop |
|
- | |||||
| 22 | 3206275 | Panel, Bottom |
|
- | |||||
| 23 | 3202082 | Cover Seam |
|
- | |||||
| 24 | 5303051630 | Insulation, Oven Wrap |
|
- | |||||
| 25 | 3016334 | Plug Button, Thermo Bulb Hole |
|
- | |||||
| 26 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 27 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 5303051630 | Insulation, Oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 30 | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 31 | 5303051856 | Cover, Wire |
|
- | |||||
| 32 | 3205757 | Back, Range |
|
- | |||||
| 33 | 08012542 | Panel - Subtop |
|
- | |||||
| 34 | W10169313 | Switch, Door (Replaces: 5308003081) |
|
Immediately | $ 29.18 | ||||
| 35 | 08007445 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 37 | 08012574 | Vent-tube |
|
- | |||||
| 38 | 5308015743 | Latch, Motor |
|
$ 211.92 | |||||
| 39 | 3051648 | Latch-door |
|
- | |||||
| 40 | 3051647 | Housing-door Latch |
|
- | |||||
| 41 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 42 | 3051649 | Tie Bar |
|
- | |||||
| 46 | 3205755 | Shield-wire |
|
- | |||||
| 48 | 3051810 | Retainer-door (2) |
|
- | |||||
| 49 | 3201631 | Channel Assy, Hinge (2) |
|
$ 58.22 | |||||
| *20727 | 19100180130 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| *20727 | 3051552 | Bracket - Thermo Bulb |
|
- | |||||
| 48A | 3934063 | Anti-tip Kit, (non-illustrated) |
|
- |
