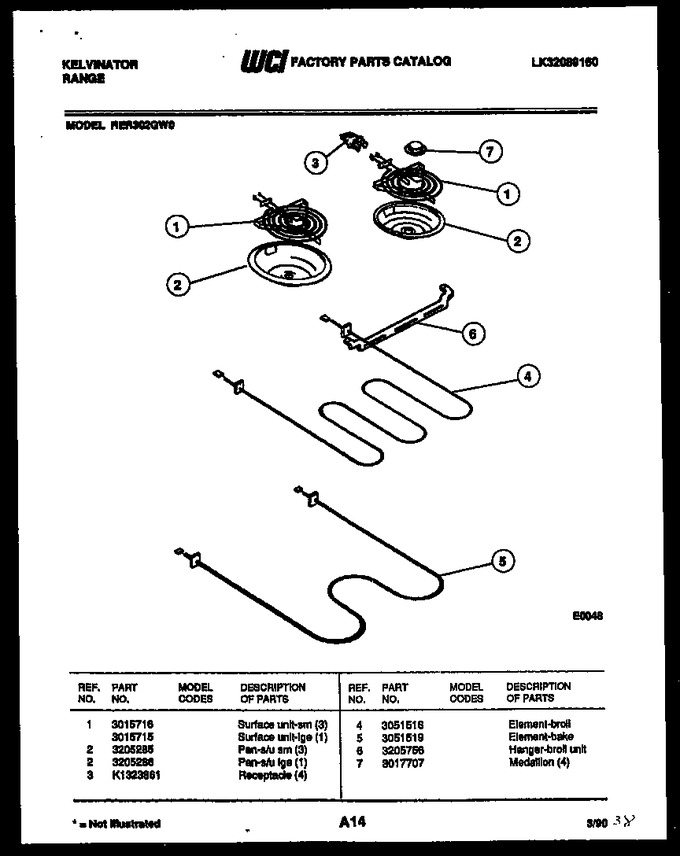

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015716 | Surface Unit Sm (3) |
|
- | |||||
| 2 | 3205286 | Pan-s/u Lge (1) |
|
- | |||||
| 2 | 3205285 | Pan - S/u Sm. (3) |
|
- | |||||
| 3 | K1323861 | Receptacle (4) |
|
- | |||||
| 4 | 3051516 | Element - Broil |
|
- | |||||
| 5 | 3051519 | Element - Bake |
|
- | |||||
| 6 | 3205756 | Hanger - Broil Unit |
|
- | |||||
| 7 | 3017707 | Medallion (4) |
|
- | |||||
| 1A | 3015715 | Surface Unit-lge (1) |
|
- |
