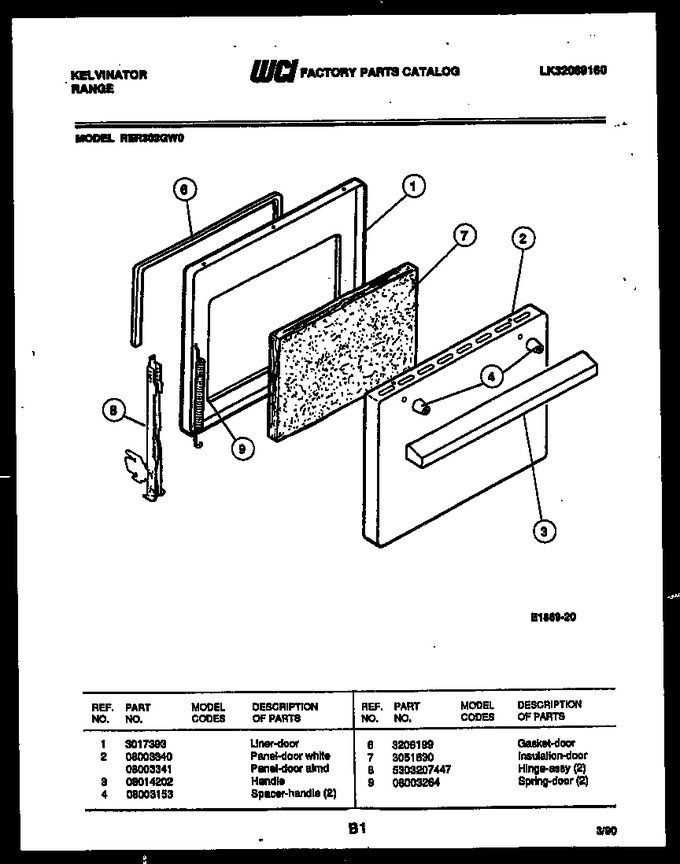

05 - Door Parts
06 - Drawer Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017393 | Liner - Door |
|
- | |||||
| 2 | 08003340 | Panel Door (white) |
|
- | |||||
| 3 | 08014202 | Handle |
|
- | |||||
| 4 | 08003153 | Spacer-handle (2) |
|
- | |||||
| 6 | 3206199 | Gasket-door |
|
- | |||||
| 7 | 3051630 | Insulation-door |
|
- | |||||
| 8 | 5303207447 | Hinge-assy (2) |
|
- | |||||
| 9 | 08003264 | Spring-oven Door |
|
- |
