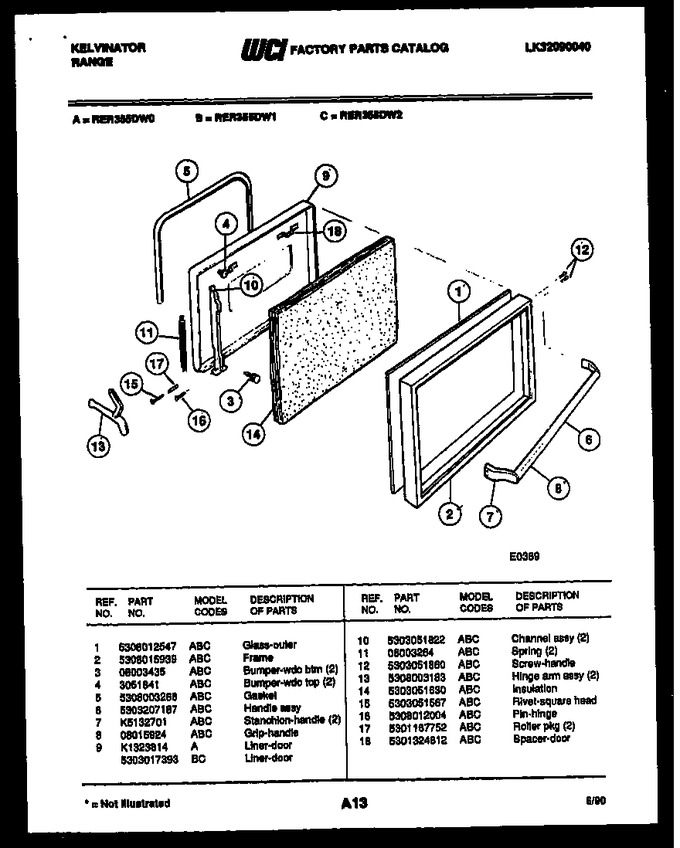

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012547 | Glass - Outer |
|
- | |||||
| 2 | 5308015939 | Frame |
|
- | |||||
| 3 | 08003435 | Spacer |
|
- | |||||
| 4 | 3051841 | Bumper-wdo Top (2) |
|
- | |||||
| 5 | 5308003268 | Gasket |
|
- | |||||
| 6 | 5303207187 | Handle Assy |
|
- | |||||
| 7 | K5132701 | Stanchion-handle (2) |
|
- | |||||
| 8 | 08015924 | Grip-handle |
|
- | |||||
| 9 | K1323814 | Liner-door |
|
- | |||||
| 10 | 5303051822 | Channel Assy (2) |
|
- | |||||
| 11 | 08003264 | Spring-oven Door |
|
- | |||||
| 12 | 5303051860 | Screw-handle |
|
- | |||||
| 13 | 5308003183 | Hinge Arm Assy (2) |
|
$ 90.35 | |||||
| 14 | 5303051630 | Insulation |
|
- | |||||
| 15 | 5303051567 | Rivet-square Head |
|
- | |||||
| 16 | 5308012004 | Pin-hinge |
|
$ 8.29 | |||||
| 17 | 5301167752 | Roller Pkg (2) |
|
- | |||||
| 18 | 5301324812 | Spacer-door |
|
- |
