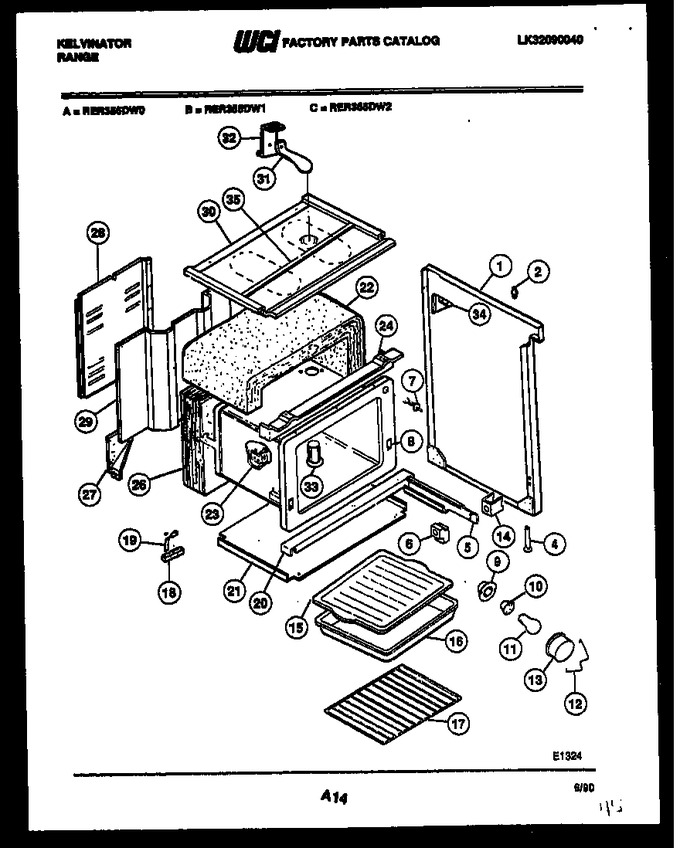

02 - Cooktop Parts


03 - Door Parts


04 - Body Parts


05 - Backguard Parts


06 - Broiler Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308012530		Side Panel, Lh Almond		Appelez-nous	-
1	3051719		Side Panel-rh Almond		Appelez-nous	-
2	5308003107		Bumper, Cooktop (2)		Appelez-nous	-
4	5303205540		Leg - Leveller (4)		Appelez-nous	-
5	5308015746		Rail-drawer Rh		Appelez-nous	-
5	3051652		Rail, Drawer Lh		Appelez-nous	-
6	3051654		Guide-drawer, Front		Appelez-nous	-
7	5301314211		Switch-oven Light				$ 95.29
8	3205131		Liner, Oven		Appelez-nous	-
9	3051511		Cup, Oven Light				$ 60.22
10	316116400		Receptacle   (Replaces: 5308011085)			Immediately	$ 56.10
11	5303001179		Bulb, Light		Appelez-nous	-
12	5303205904		Retainer-lens				$ 7.67
13	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
14	3051653		Spacer, Drawer Rail (2)		Appelez-nous	-
15	3203164		Insert - Broiler Pan		Appelez-nous	-
16	08005315		Pan, Broiler		Appelez-nous	-
17	K001311570		Rack		Appelez-nous	-
18	5304409888		Terminal Block   (Replaces: 5306563359)			Immediately	$ 26.69
19	5301145190		Strap, Ground		Appelez-nous	-
20	K315108		Channel-ov Support		Appelez-nous	-
21	3203172		Panel - Bottom		Appelez-nous	-
22	3051521		Insulation Wrap		Appelez-nous	-
23	3051552		Bracket - Thermo Bulb		Appelez-nous	-
24	K5303702		Channel-ov Support		Appelez-nous	-
26	5303051630		Insulation-back		Appelez-nous	-
27	K5285802		Gusset Rear, Rh		Appelez-nous	-
27	K5285804		Gusset Rear, Lh		Appelez-nous	-
28	K5276202		Wire-cover		Appelez-nous	-
29	K5275802		Back, Range		Appelez-nous	-
30	K005025704		Panel, Subtop		Appelez-nous	-
31	3051655		Tube, Oven Vent		Appelez-nous	-
32	K5130801		Bracket-vent		Appelez-nous	-
33	5301315241		Vent Tube		Appelez-nous	-
34	3051657		Gusset-backguard (2)		Appelez-nous	-
35	08014243		Bracket-cooktop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
