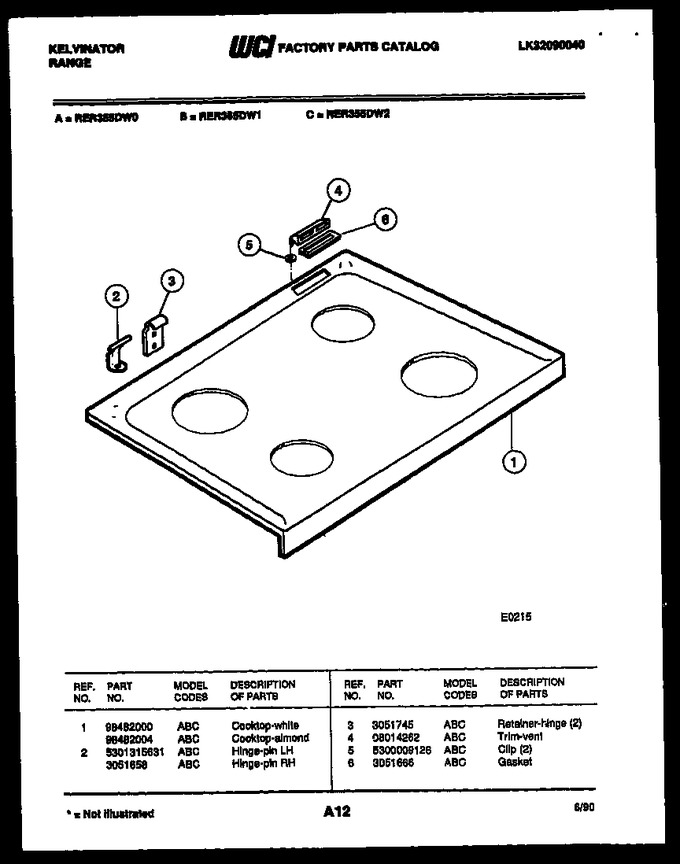

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98482000 | Cooktop-white |
|
- | |||||
| 2 | 3051658 | Hinge-pin Rh |
|
- | |||||
| 2 | 5301315631 | Hinge-pin Lh |
|
- | |||||
| 3 | 3051745 | Retainer Hinge (2) |
|
- | |||||
| 4 | 08014262 | Trim-vent |
|
- | |||||
| 5 | 5300009126 | Clip |
|
- | |||||
| 6 | 3051666 | Gasket |
|
- |
