SELECT A DIAGRAM

02 - Cooktop Parts


03 - Door Parts


04 - Body Parts


05 - Backguard Parts


06 - Broiler Parts


07 - Drawer Parts

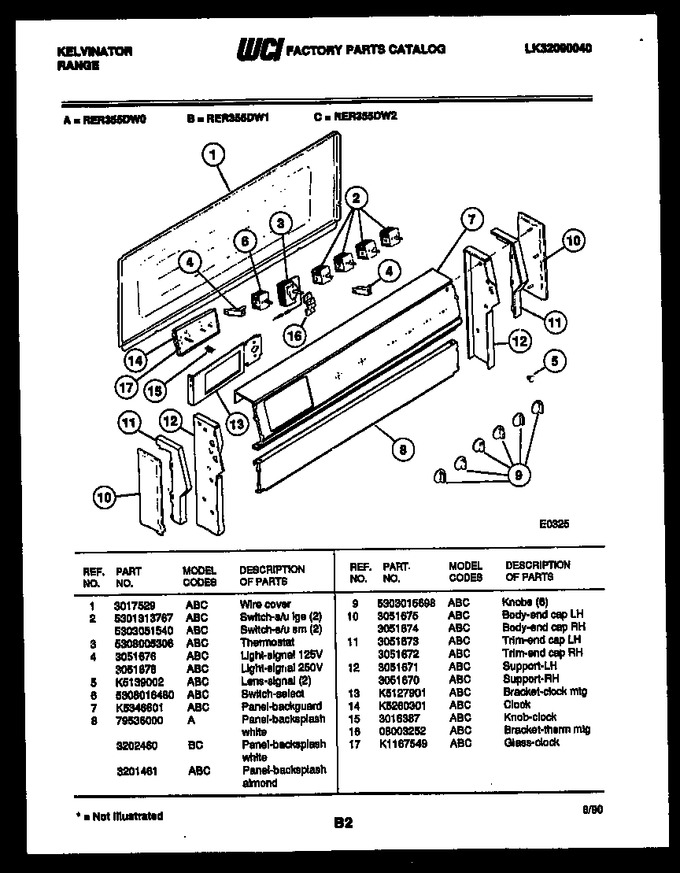

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017529		Wire Cover		Appelez-nous	-
2	5301313767		Switch-s/u Lge (2)		Appelez-nous	-
3	5308005306		Thermostat		Appelez-nous	-
4	3051676		Light-signal 125v		Appelez-nous	-
5	K5139002		Lens-signal (2)		Appelez-nous	-
6	5308016480		Switch - Select				$ 402.15
7	K5346601		Panel-backguard		Appelez-nous	-
8	79536000		Panel-backsplash White		Appelez-nous	-
9	5303015698		Knobs (6)		Appelez-nous	-
10	3051675		Body-end Cap-l.h.		Appelez-nous	-
11	3051673		Trim-end Cap-l.h.		Appelez-nous	-
12	3051671		Support Lh		Appelez-nous	-
13	K5127901		Bracket-clock Mtg		Appelez-nous	-
14	K5260301		Clock		Appelez-nous	-
15	3016387		Knob - Clock		Appelez-nous	-
16	08003252		Bracket - Thermostat		Appelez-nous	-
17	K1167549		Glass Clock		Appelez-nous	-
10A	3051674		Body-end Cap-r.h.		Appelez-nous	-
11A	3051672		Trim-end Cap-r.h.		Appelez-nous	-
12A	3051670		Support Rh		Appelez-nous	-
2A	5303051540		Switch, S/u Sm (2)		Appelez-nous	-
4A	3051678		Light-signal 250v		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
