SELECT A DIAGRAM
01 - Bezel Assy
02 - Door Assy
03 - Electrical Assy
04 - Interior Assy
05 - Page 2
06 - Page 3
SELECT A DIAGRAM
New Model Search:

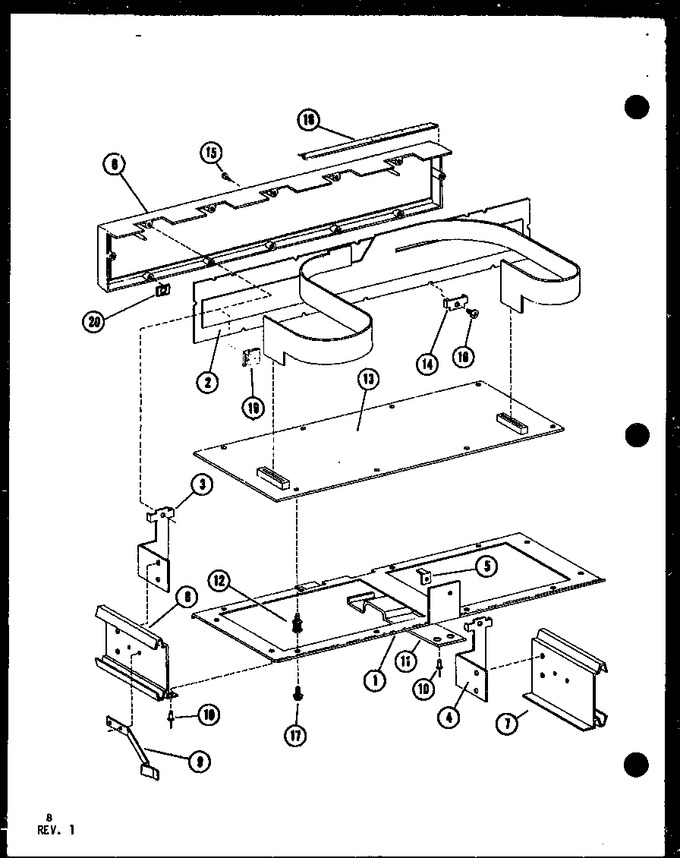

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7379501 | Plate-p C Board |
|
- | |||||
| 2 | D7292801 | Switch & Ind Assy |
|
- | |||||
| 3 | B5757901 | Brkt-channel |
|
- | |||||
| 4 | B5757902 | Brkt-channel |
|
- | |||||
| 5 | M0320903 | Terminal-ground |
|
- | |||||
| 6 | D7292201 | Frame-timer |
|
- | |||||
| 7 | C8765405 | Channel-glide |
|
- | |||||
| 8 | C8765406 | Channel-glide |
|
- | |||||
| 9 | A3268901 | Retainer-spring |
|
- | |||||
| 10 | A4539601 | Pop Rivet |
|
- | |||||
| 11 | B5787501 | Spring |
|
- | |||||
| 12 | M0580502 | Support K |
|
- | |||||
| 13 | D7293602 | Elect Module-kit |
|
- | |||||
| 14 | A3268301 | Brkt-retainer |
|
- | |||||
| 16 | M0253704 | Screw A K |
|
- | |||||
| 17 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 18 | A3030301 | Gasket (inch) |
|
- | |||||
| 19 | A3030316 | Gasket |
|
- |
