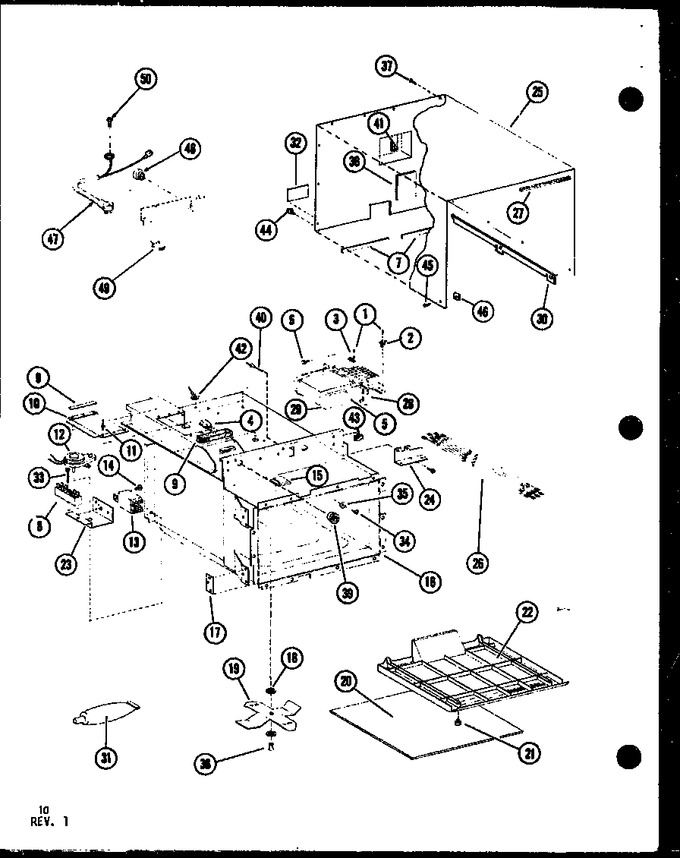

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0234114 | Screw |
|
- | |||||
| 2 | B5684102 | Thermal Protector |
|
- | |||||
| 3 | B5684106 | Thermal Protector |
|
- | |||||
| 4 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 5 | C8720505 | Assembly, Isolator, With Gaske |
|
- | |||||
| 6 | M0216517 | Screw |
|
- | |||||
| 7 | A3030335 | Gasket-per Ft |
|
- | |||||
| 8 | B5677204 | Terminal Block |
|
- | |||||
| 9 | B5718903 | Gasket K |
|
- | |||||
| 10 | B5714101 | Cover-isolator |
|
- | |||||
| 11 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 12 | B5602812 | Motor |
|
- | |||||
| 13 | B5674307 | Relay |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 15 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 16 | D7358903 | Oven Weldment |
|
- | |||||
| 17 | A3250301 | Shim-hinge |
|
- | |||||
| 18 | A3109101 | Washer |
|
- | |||||
| 19 | C8708601 | Stirrer Blade (antenna) |
|
- | |||||
| 20 | B5795001 | Tray-oven |
|
- | |||||
| 21 | A1002301 | Screw |
|
- | |||||
| 22 | D7396201 | Grease Shield Kit |
|
- | |||||
| 23 | C8766001 | Plate Relay Mtg |
|
- | |||||
| 24 | B5756101 | Brkt Supt-interlock |
|
- | |||||
| 25 | C8817602 | Weld-outer Case |
|
- | |||||
| 26 | D7389401 | Wire Harn-oven |
|
- | |||||
| 27 | A3030301 | Gasket (inch) |
|
- | |||||
| 28 | A3225401 | Gasket K |
|
- | |||||
| 29 | A3225402 | Gasket K |
|
- | |||||
| 30 | C8812901 | Guide-strip |
|
- | |||||
| 31 | M0275501 | Sealer |
|
- | |||||
| 32 | B5738501 | Seal K |
|
- | |||||
| 33 | M0234117 | Screw |
|
- | |||||
| 34 | M0253504 | Screw |
|
- | |||||
| 35 | M0273612 | Washer |
|
- | |||||
| 36 | M0114002 | Clip |
|
- | |||||
| 37 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 38 | A3205601 | Insulation |
|
- | |||||
| 39 | A3293503 | Snap Bushing |
|
- | |||||
| 40 | A4539601 | Pop Rivet |
|
- | |||||
| 41 | A3030304 | Gasket, 24`` |
|
- | |||||
| 42 | M0320903 | Terminal-ground |
|
- | |||||
| 43 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 44 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 45 | M0207943 | Screw |
|
- | |||||
| 46 | WP3400029 | Nut (Replaces: M0282010) |
|
Immediately | $ 6.98 | ||||
| 47 | B5674403 | Cord, Power |
|
- | |||||
| 48 | M0370007 | Strain Relief |
|
- | |||||
| 49 | M0325301 | Insulator, Term. K |
|
- |
