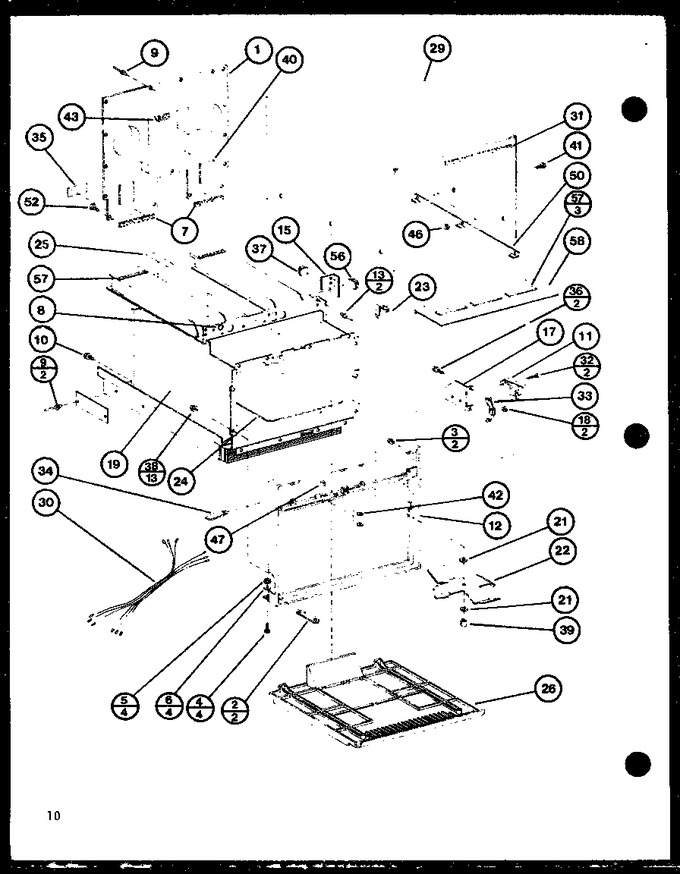

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8801105 | Panel, Access Pntd |
|
- | |||||
| 2 | C8937601 | See Svc Ltr Cr-163c |
|
- | |||||
| 2 | C8937701 | See Srvc Ltr Cr-163d |
|
- | |||||
| 3 | M0120002 | Nut K |
|
- | |||||
| 4 | WPW10001160 | Screw (Replaces: M0200316) |
|
$ 8.86 | |||||
| 5 | WP488130 | Nut-keps (Replaces: M0280801) |
|
$ 6.27 | |||||
| 6 | M0272402 | Lock Washer |
|
- | |||||
| 7 | A3030335 | Gasket-per Ft |
|
- | |||||
| 8 | A3293503 | Snap Bushing |
|
- | |||||
| 9 | A4539601 | Pop Rivet |
|
- | |||||
| 10 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 11 | A3163409 | Switch, Preform |
|
- | |||||
| 12 | D7666401 | Bezel-outercase |
|
- | |||||
| 13 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 15 | B8349201 | Bracket, Harness |
|
- | |||||
| 17 | B5675403 | Bracket-latch |
|
- | |||||
| 18 | M0270522 | Washer |
|
- | |||||
| 19 | D7518604 | Weld, Oven Cavity |
|
- | |||||
| 21 | A3109101 | Washer |
|
- | |||||
| 22 | C8708601 | Stirrer Blade (antenna) |
|
- | |||||
| 23 | M0118801 | Clip |
|
- | |||||
| 24 | B5795001 | Tray-oven |
|
- | |||||
| 25 | M0275036 | Tape-k |
|
- | |||||
| 26 | D7457101 | Sub D7457103 |
|
- | |||||
| 29 | D7379601 | Wrapper, Outer Case |
|
- | |||||
| 30 | D7691201 | Harness, Oven |
|
- | |||||
| 31 | A3030301 | Gasket (inch) |
|
- | |||||
| 32 | M0227520 | Screw |
|
- | |||||
| 33 | C3680202 | Strike-latch |
|
- | |||||
| 34 | M0275501 | Sealer |
|
- | |||||
| 35 | B5738501 | Seal K |
|
- | |||||
| 36 | M0216517 | Screw |
|
- | |||||
| 37 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 38 | M0282901 | Nut, Self Thread |
|
- | |||||
| 39 | M0114002 | Clip |
|
- | |||||
| 40 | A3205602 | Insulation |
|
- | |||||
| 41 | M0207943 | Screw |
|
- | |||||
| 42 | A3182101 | Bushing |
|
- | |||||
| 43 | B8343701 | Gasket |
|
- | |||||
| 46 | WP3400029 | Nut (Replaces: M0282010) |
|
Immediately | $ 6.98 | ||||
| 47 | A3181801 | Guide-door Stop |
|
- | |||||
| 50 | C8812901 | Guide-strip |
|
- | |||||
| 52 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 56 | M0104104 | Clip, Cord |
|
- | |||||
| 57 | A4591129 | Gasket K |
|
- | |||||
| 58 | C8933802 | Sheild, Drip |
|
- |
