SELECT A DIAGRAM

01 - Page 1


02 - Page 2


03 - Page 3


04 - Page 4


05 - Page 5

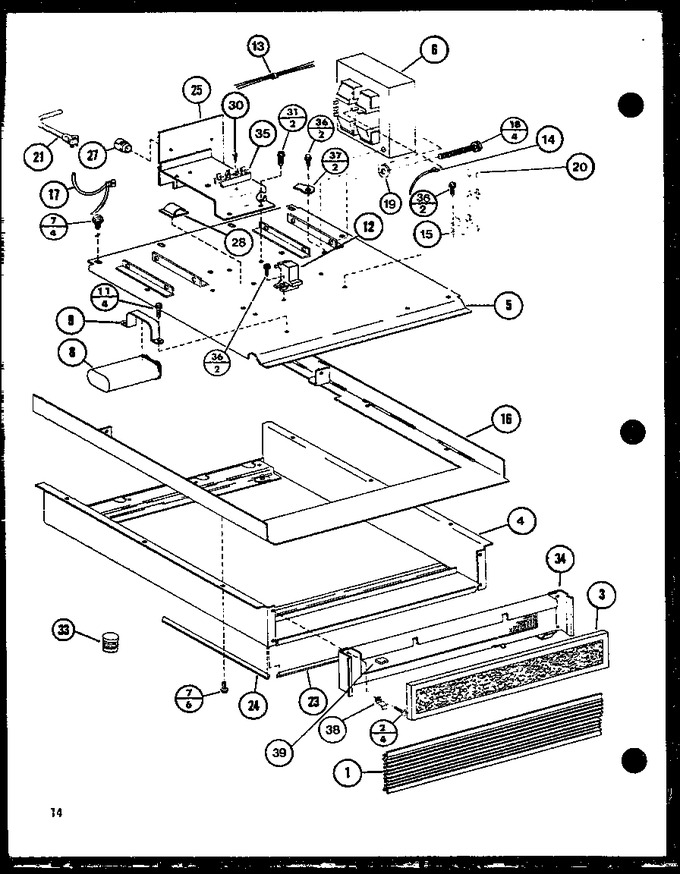

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8708502		Grille Air Inlet		Appelez-nous	-
2	M0213815		Screw		Appelez-nous	-
3	B5714801		Filter		Appelez-nous	-
4	C8709107		Base Pan Assembly		Appelez-nous	-
5	C8908202		Chassis Weld		Appelez-nous	-
6	D7498502		Transformer		Appelez-nous	-
7	M0253543		Screw K		Appelez-nous	-
8	D8547903		Capacitor, H.v.		Appelez-nous	-
9	A4055404		Strap, Capacitor		Appelez-nous	-
11	M0216517		Screw		Appelez-nous	-
12	B8329801		Kit, Diode		Appelez-nous	-
13	D7691701		Wire Harness P.s.		Appelez-nous	-
15	D7681501		Triac				$ 44.05
16	C8775302		Oven Mtg Plate		Appelez-nous	-
17	D7292683		Jumper Wire		Appelez-nous	-
18	M0254452		Screw		Appelez-nous	-
19	M0272805		Lock Washer		Appelez-nous	-
20	B8329402		Snubber Assembly		Appelez-nous	-
21	B5674403		Cord, Power		Appelez-nous	-
23	C8870702		Gasket, Base Pan		Appelez-nous	-
24	C8870703		Gasket, Base Pan		Appelez-nous	-
25	B5788006		Strain Rel. Weld		Appelez-nous	-
27	M0370007		Strain Relief		Appelez-nous	-
28	M0104102		Clip, Cord				$ 8.10
30	M0234117		Screw		Appelez-nous	-
31	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
33	D7573901		Relay		Appelez-nous	-
33	A3204901		Thermal Compound K		Appelez-nous	-
34	C8847903		Air Inlet Weld		Appelez-nous	-
35	B5677203		Terminal Block		Appelez-nous	-
36	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
38	B8364201		Spring		Appelez-nous	-
39	C8870701		Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
