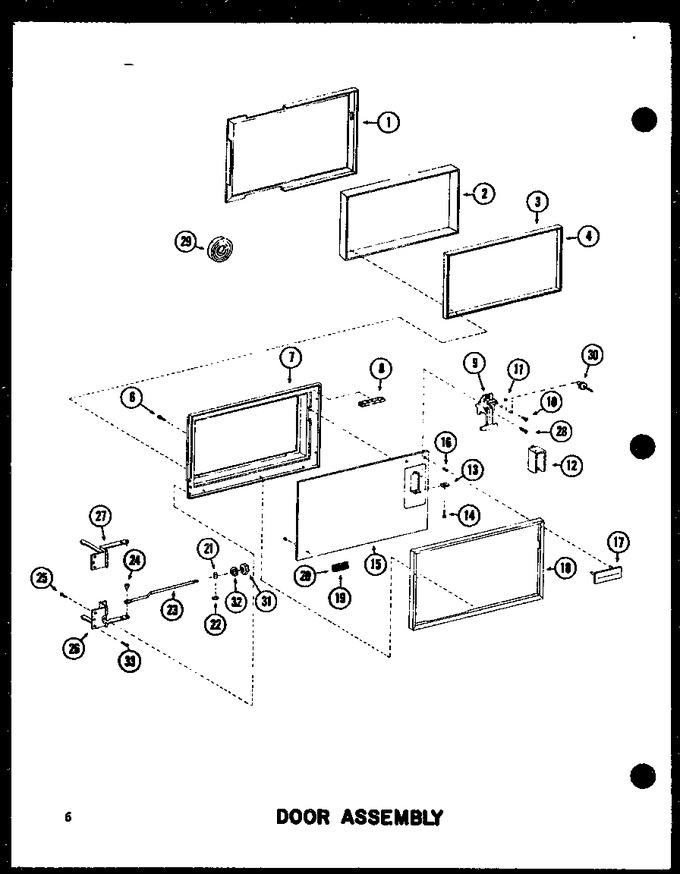

01 - Bezel Assy


02 - Door Assy


03 - Electrical Assy


04 - Interior Assy


05 - Page 2


06 - Page 3


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C3669101		Gasket		Appelez-nous	-
2	D7143802		Inner Door Kit		Appelez-nous	-
3	B5686004		Gasket		Appelez-nous	-
4	B5686003		Gasket		Appelez-nous	-
6	M0253118		Screw		Appelez-nous	-
7	D7132501		Weldment, Inner Door Ring		Appelez-nous	-
8	A4591121		Gasket		Appelez-nous	-
9	D7178502		T Handle Kit		Appelez-nous	-
10	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
11	A3195701		Guides Hndl K		Appelez-nous	-
12	B5671901		Bezel-door Handle		Appelez-nous	-
13	M0288102		Speed Nut		Appelez-nous	-
14	M0234117		Screw		Appelez-nous	-
15	D7178604		Panel-outer Door		Appelez-nous	-
16	M0113005		Clip Push On		Appelez-nous	-
17	C3668802		Escutcheon		Appelez-nous	-
18	D7132701		Outer Door Ring		Appelez-nous	-
19	B5694721		Insert-medallion		Appelez-nous	-
20	B5694901		Medallion		Appelez-nous	-
21	A3181801		Guide-door Stop		Appelez-nous	-
22	A3182101		Bushing		Appelez-nous	-
23	B5748702		Arm, Dr Stop K		Appelez-nous	-
24	A3185001		Bushing-door Arm		Appelez-nous	-
25	M0253230		Screw		Appelez-nous	-
26	C3666306		Hinge-bottom		Appelez-nous	-
27	C3666305		Hinge-top		Appelez-nous	-
28	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
29	M0275154		Tape Per Roll		Appelez-nous	-
29	M0275141		Tape, Gasket To Door, 1``		Appelez-nous	-
30	B5642906		Rivet, Pop (wht)		Appelez-nous	-
31	WP488130		Nut   (Replaces: M0282007)				$ 6.27
32	M0270501		Washer		Appelez-nous	-
33	M0205442		Screw, Nylock		Appelez-nous	-
